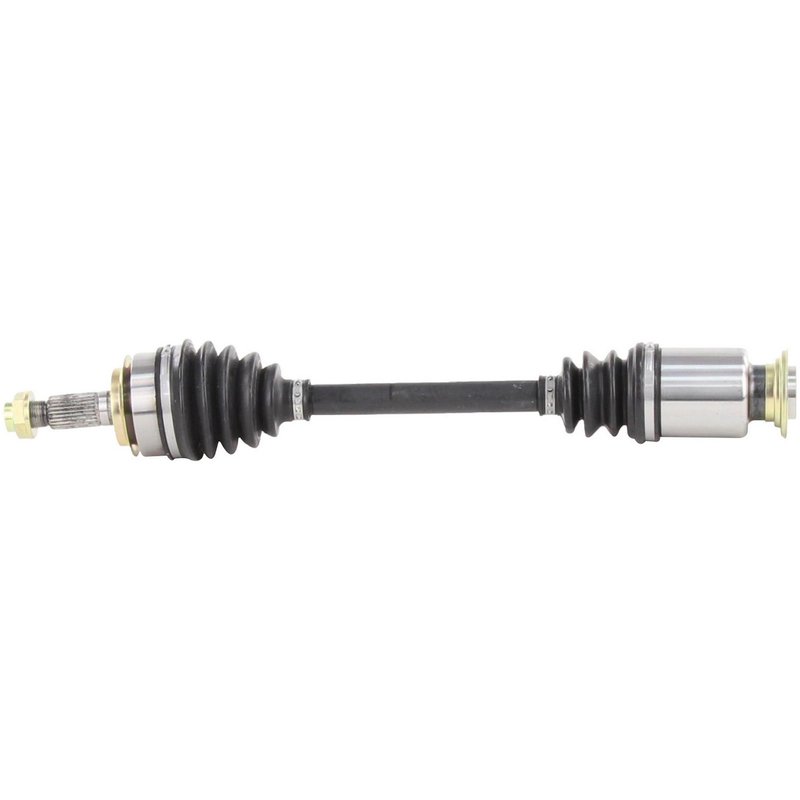

TrakMotive HO-8417 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8417 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.4 |
| Overall Compressed Length (mm) | 569 |
| Product line | CV Axle Shaft |
| Fits | Honda · 6 vehicles |
OE-style replacement. New CV axle shaft for a straightforward driveline repair.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Ready for a cleaner, more complete installation.
Cross-references Cardone New 66-4268, Cardone Reman 60-4268 and TrakMotive HO-8417 for the same application. See all 10.
Honda Fit Front Right CV Axle Shaft
TrakMotive HO-8417 is a new CV axle shaft for the front right position on 2009-2014 Honda Fit models. It is built for driveline service where a worn axle can cause vibration, clicking, or loss of smooth power transfer during turns and acceleration.
Key Features
- Direct-fit CV axle shaft for the front right side
- New construction for service replacement applications
- Neoprene boot material for joint protection
- Female inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Includes axle nut with M22 x 1.5 thread size
- Hex axle nut head with 31.8 mm hex size
- Overall compressed length: 22.4 in. (569 mm)
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft, part number HO-8417, is engineered for 2009-2014 Honda Fit front right applications. The axle uses a female inboard connection, a conventional outboard joint, and a neoprene boot to help protect the joint assembly during normal driveline movement. TrakMotive identifies this axle as a new unit, and the included axle nut uses an M22 x 1.5 thread with a stake locking type. This part cross-references Cardone New 66-4268 and Cardone Reman 60-4268 for the same application.
Common Issues This Part Can Address
- Clicking or popping noises during turns
- Vibration felt through the drivetrain under acceleration
- Grease leakage from a damaged CV boot
- Excessive play or wear in the front right axle assembly
- Loss of smooth power delivery from the transaxle to the wheel
Installation Notes and Tips
Verify front right fitment against the vehicle before installation. Confirm axle nut thread size, spline count, and compressed length match the original part. Inspect the hub, seals, and surrounding suspension components for wear before installing the replacement axle. Because this axle does not include an ABS tone ring, confirm the vehicle’s original configuration and compare it to the existing axle assembly. For 2009-2014 Honda Fit service, HO-8417 should be matched carefully to the original driveline layout.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part number HO-8417 is built for replacement use in Honda Fit driveline service and is listed with OE-style interchange references for the same application.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
| 2013 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
| 2012 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
| 2011 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
| 2010 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
| 2009 | Honda | Fit | Automatic | Front Right | CV Axle Shaft |
