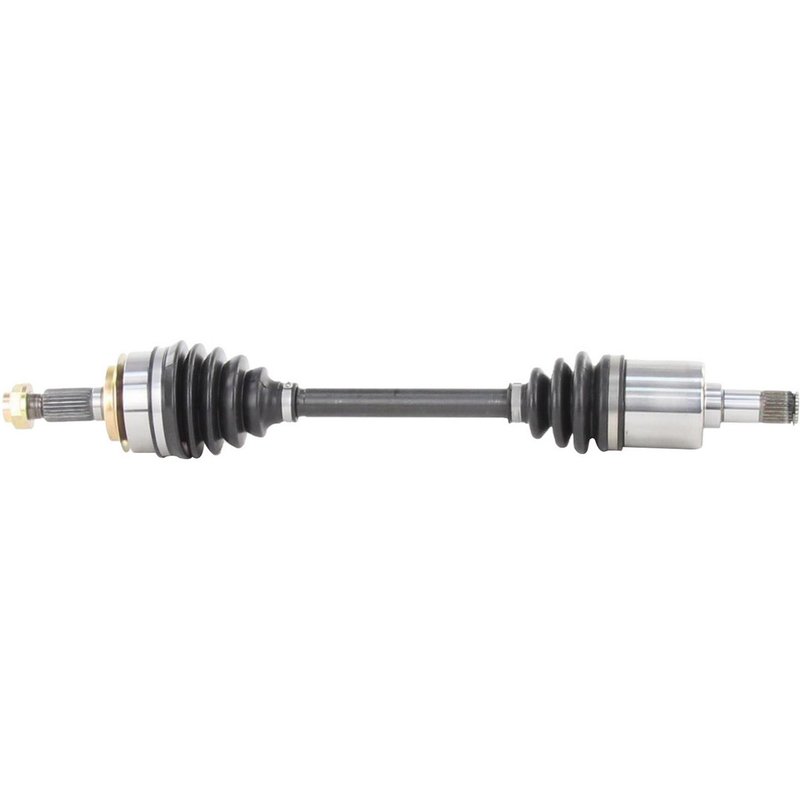

TrakMotive HO-8420 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8420 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.54 |
| Overall Compressed Length (mm) | 598 |
| Product line | CV Axle Shaft |
| Fits | Acura and Honda · 5 vehicles |
New unit. Freshly manufactured CV axle shaft for dependable replacement.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
Includes axle nut. Comes with the hardware needed for a complete install.
Cross-references TrakMotive HO-8420, 44306TT1A01 and HO-8-8744 for the same application. See all 3.
CV Axle Shaft for Honda Civic and Acura ILX
TrakMotive HO-8420 is a new front left CV axle shaft built for specific Honda Civic and Acura ILX applications. It is engineered with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on listed vehicles.
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8420
- Fits 2014-2015 Acura ILX, front left
- Fits 2013-2015 Honda Civic, front left
- New axle shaft with included axle nut
- Neoprene boot material for driveline protection
- 25 inboard splines and 26 outboard splines
- Overall compressed length: 23.54 in. (598 mm)
- Axle nut thread size: M22 x 1.5
Product Details
This TrakMotive CV axle shaft is built for front left service on the 2013-2015 Honda Civic and 2014-2015 Acura ILX. The HO-8420 uses a male inboard shaft connection, a conventional outboard shaft connection, and a hex axle nut with stake locking type. It is supplied as a new axle shaft and includes an axle nut for the listed application.
TrakMotive positions the CV Axle Shaft line as a direct-fit driveline replacement option, and this HO-8420 follows that approach with application-specific spline counts, compressed length, and joint design. It is listed without an ABS tone ring, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Honda 44306TT1A01 and HO-8-8744 for the same application.
What It Helps Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- Driveline noise caused by excessive CV joint play
- Front left axle replacement needs on the listed Civic and ILX models
Installation Notes
Verify front left fitment by year, make, model, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, seals, and surrounding suspension components during service, and follow the vehicle manufacturer’s torque procedures for axle nut and fastener installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline components.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Acura | ILX | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
| 2015 | Honda | Civic | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
| 2014 | Acura | ILX | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
| 2014 | Honda | Civic | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
| 2013 | Honda | Civic | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
