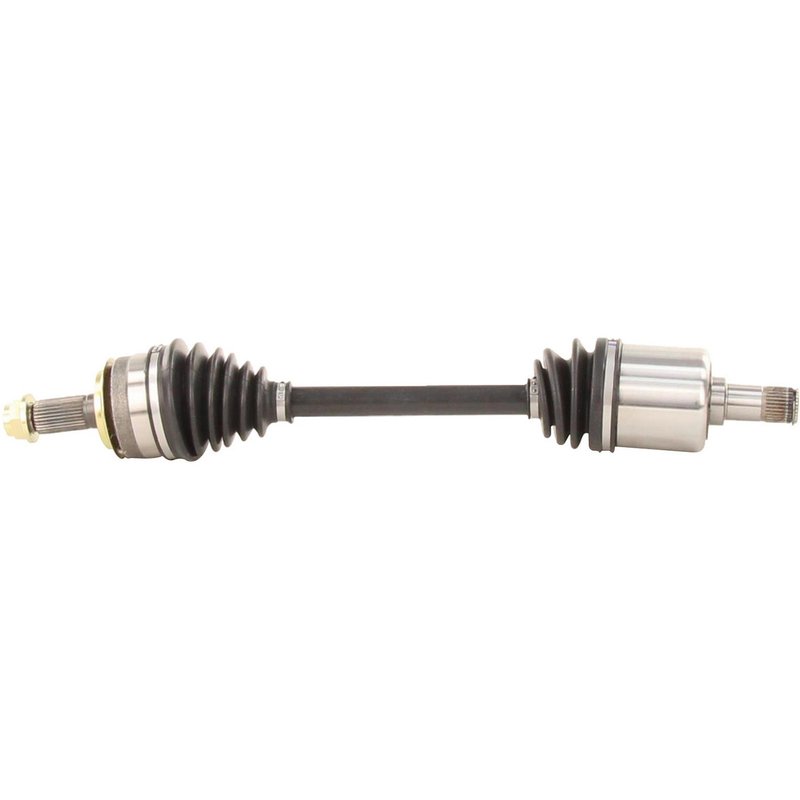

TrakMotive HO-8428 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8428 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.46 |
| Overall Compressed Length (mm) | 672 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive HO-8428, 44306T2BA00 and 44306T2BA21 for the same application. See all 5.
Honda Accord Front Left CV Axle Shaft
TrakMotive HO-8428 is a new CV axle shaft for the front left position on select Honda Accord applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for OE-style driveline service.
This CV axle shaft is a direct-fit replacement for 2013-2017 Honda Accord front left applications, including standard duty replacement coverage for 2015-2016 models and outer assembly service on 2013-2014 and 2017 models. The HO-8428 includes the axle nut and uses a hex-head, stake-lock nut with M26 x 1.5 thread size.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8428
- Fits front left position on select Honda Accord models
- New axle shaft with neoprene boot material
- Male inboard shaft connection with conventional outboard joint
- 31 inboard splines and 30 outboard splines
- Overall compressed length: 26.46 in. (672 mm)
- Axle nut included; hex head, stake type, M26 x 1.5 thread
- No ABS tone ring included
Product Details
TrakMotive HO-8428 is part of the CV Axle Shaft line, focused on driveline and axle replacement for passenger vehicles. For Honda Accord front left service, this axle provides the specified spline counts, compressed length, and joint configuration needed for a proper OE-style replacement. The part number HO-8428 is also referenced for the same application under interchange listings, making it easier to match against existing catalog records.
Compatible With: 2013-2014 Honda Accord, front left; 2015-2016 Honda Accord, front left; 2017 Honda Accord, front left. This part cross-references 44306T2BA00 and HO10600E for the same application.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration during acceleration caused by axle wear or imbalance
- Grease leakage from a damaged CV boot
- Clunking or driveline noise from excessive axle play
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm front left fitment against the vehicle’s build details, especially on 2015-2016 Honda Accord standard duty replacement applications. Inspect the hub, seals, and surrounding suspension components during replacement, and torque the included axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive lists this axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certification. The HO-8428 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Honda | Accord | Automatic | 3.5L | V6 | Front Left | Outer Assembly; CV Axle Shaft |
| 2016 | Honda | Accord | Automatic | 3.5L | V6 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Honda | Accord | Automatic | 3.5L | V6 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Honda | Accord | Automatic | 3.5L | V6 | Front Left | Outer Assembly; CV Axle Shaft |
| 2013 | Honda | Accord | Automatic | 3.5L | V6 | Front Left | Outer Assembly; CV Axle Shaft |
