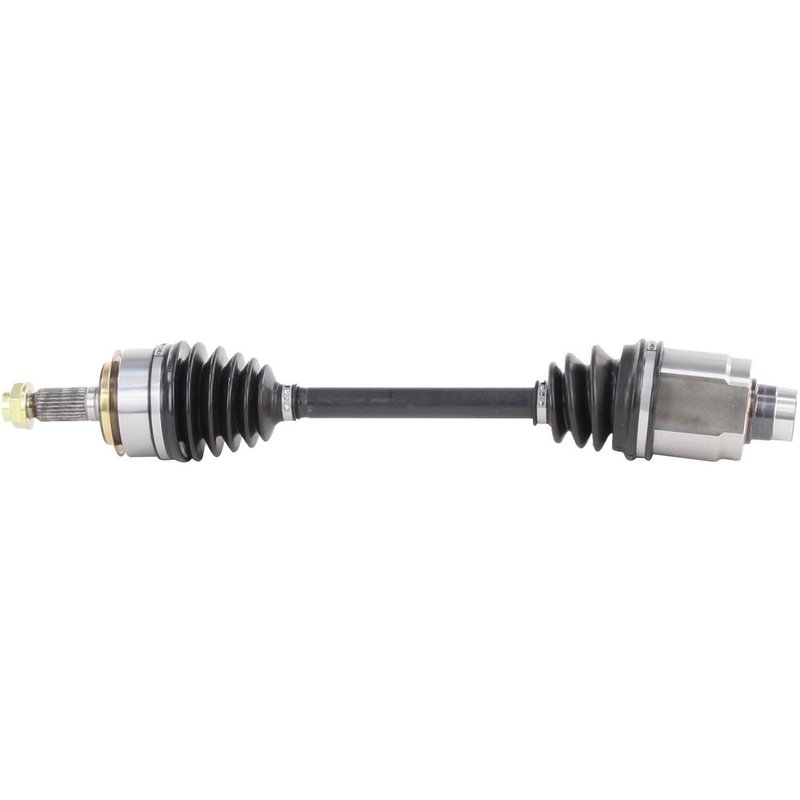

TrakMotive HO-8429 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8429 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.89 |
| Overall Compressed Length (mm) | 581.5 |
| Product line | CV Axle Shaft |
| Fits | Acura · 7 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps protect the joint from road debris and moisture.
Axle nut included. Conveniently supplied for a complete installation.
Cross-references TrakMotive HO-8429 and 44305SNRA for the same application. See all 2.
TrakMotive HO-8429 CV Axle Shaft for Acura CSX
The TrakMotive HO-8429 is a new front right CV axle shaft for select Acura CSX applications. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint to match the listed vehicle configurations.
Use this CV axle shaft for Acura CSX front right service where a direct replacement axle is needed. The HO-8429 includes an axle nut and is specified with 27-2T inboard splines, 26 outboard splines, and an overall compressed length of 22.89 in. This part cross-references Monroe Shocks & Struts (e.g., 44305SNRA) for the same application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8429
- Position: Front right
- New construction
- Neoprene boot material
- Female inboard shaft connection
- Conventional outboard shaft connection
- Axle nut included, M22 x 1.5 thread
- Hex axle nut head, 31.8 mm hex size
- No ABS tone ring included
- Overall compressed length: 22.89 in (581.5 mm)
Detailed Description
TrakMotive HO-8429 is a CV axle shaft for the front right side of select 2006-2011 Acura CSX models. It is listed for 2006 Acura CSX front right, 2007 Acura CSX front right, 2007 Acura CSX front right with VIN 7 (8th digit), 2008-2010 Acura CSX front right with VIN 5 (8th digit) and Base notes, and 2011 Acura CSX front right. The axle is configured with a female inboard joint, a conventional outboard joint, and a neoprene boot for the specified driveline layout.
The HO-8429 is a direct-fit driveline replacement for Acura CSX front right CV axle service where the original axle matches the listed spline count and compressed length. TrakMotive identifies this part as a new axle shaft and notes that ABS axles fit non-ABS applications unless otherwise noted. The part number HO-8429 is also used as the TrakMotive interchange reference for this application.
What It Helps Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged CV boot
- Noise from a worn or loose front right axle assembly
- Driveline issues on listed Acura CSX front right applications
Installation Notes and Tips
Verify the vehicle’s year, trim, VIN notes, and front right position before installation. Confirm the axle nut thread size, spline count, and compressed length against the original part to ensure proper match-up. Inspect related hub, seal, and suspension components during replacement so the new axle can seat correctly and operate smoothly.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Acura | CSX | — | Front Right | CV Axle Shaft |
| 2010 | Acura | CSX | iTech | Front Right | VIN 5 (8th Digit); Base; CV Axle Shaft |
| 2009 | Acura | CSX | Technology | Front Right | VIN 5 (8th Digit); Base; CV Axle Shaft |
| 2008 | Acura | CSX | Technology | Front Right | VIN 5 (8th Digit); Base; CV Axle Shaft |
| 2007 | Acura | CSX | Touring | Front Right | VIN 5 (8th Digit); CV Axle Shaft |
| 2007 | Acura | CSX | Premium | Front Right | VIN 7 (8th Digit); CV Axle Shaft |
| 2006 | Acura | CSX | — | Front Right | CV Axle Shaft |
