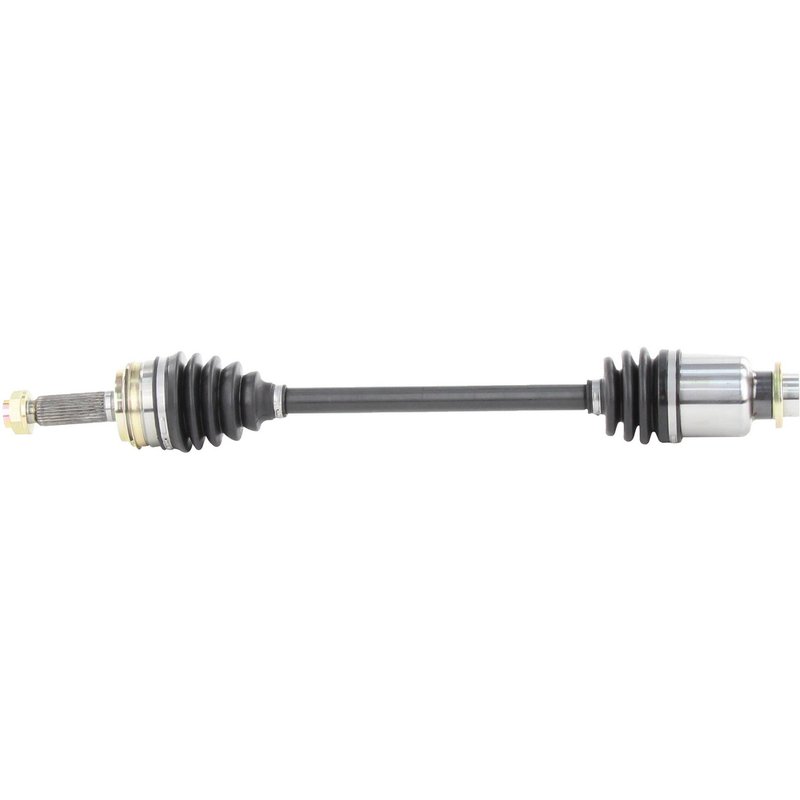

TrakMotive HO-8430 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-8430 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.24 |
| Overall Compressed Length (mm) | 692 |
| Product line | CV Axle Shaft |
| Fits | Honda · 7 vehicles |
OE direct replacement. New CV axle shaft with included axle nut for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO 9001 and TS 16949 certified. Built under quality management standards for consistent production.
Cross-references TrakMotive HO-8430 and 60-4281 for the same application. See all 2.
Honda Pilot Rear Left CV Axle Shaft
TrakMotive HO-8430 is a new CV axle shaft for the rear left position on select 2009-2015 Honda Pilot models. It is built for direct driveline replacement service and includes the axle nut for the application.
Key Features
- Fits 2009-2015 Honda Pilot, rear left
- TrakMotive CV Axle Shaft, part number HO-8430
- New replacement axle with a 27.24 in. overall compressed length
- Female inboard shaft connection style with 29-2T inboard splines
- Conventional outboard joint type with 28 outboard splines
- Neoprene boot material for driveline service use
- Axle nut included; hex head, M24 x 1.5 thread, stake locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for rear left driveline replacement on the Honda Pilot. The HO-8430 uses a female inboard connection, a conventional outboard joint, and the specified spline counts to match the listed application. TrakMotive positions this CV axle shaft line as a direct-fit driveline solution, and the manufacturer notes ISO 9001:1007 and TS 16949:2009 certification for its production process.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Replacing a worn or noisy rear left CV axle on a Honda Pilot
- Restoring smooth power transfer after CV joint wear
- Addressing vibration or clicking from the rear driveline
- Replacing an axle with damaged splines, boot, or joint components
- Servicing a 2009-2015 Honda Pilot rear left axle assembly
Installation Notes
Verify rear left fitment against the vehicle’s year and driveline configuration before installation. Confirm axle nut thread size, spline count, and compressed length against the removed part. Because ABS tone ring is not included, compare the original axle setup to ensure the correct configuration for the vehicle.
Quality Assurance
TrakMotive HO-8430 is a new CV axle shaft backed by a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its manufacturing is certified to ISO 9001:1007 and TS 16949:2009 standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2014 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2013 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2012 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2011 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2010 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2009 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
