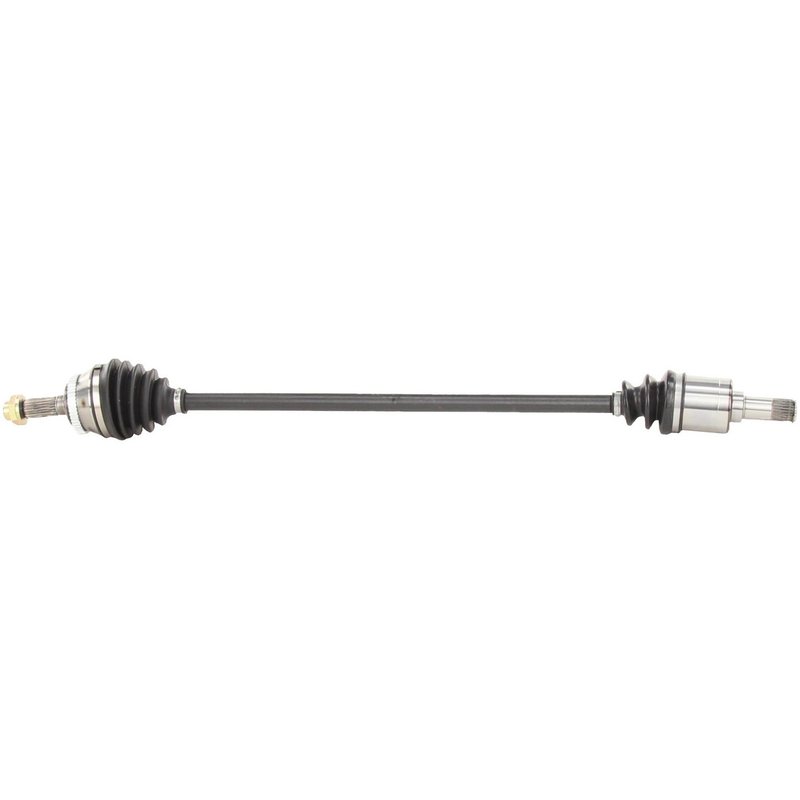

TrakMotive HO-8446 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8446 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.61 |
| Overall Compressed Length (mm) | 879 |
| Product line | CV Axle Shaft |
| Fits | Honda · 7 vehicles |
ABS tone ring included. Built for ABS-equipped applications and non-ABS fitment where noted.
Neoprene boot material. Helps resist wear while keeping the CV joint protected.
New CV axle shaft. A direct replacement for driveline and axle service.
Cross-references TrakMotive HO-8446, 44305S3Y950 and 44305S3Y951 for the same application. See all 8.
TrakMotive HO-8446 CV Axle Shaft for Honda Insight
The TrakMotive HO-8446 CV axle shaft is a new front right driveline replacement for 2000-2006 Honda Insight models. Built for direct-fit service, it includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2000-2006 Honda Insight, front right
- TrakMotive CV Axle Shaft, part number HO-8446
- New axle assembly with male inboard joint and conventional outboard joint
- ABS tone ring included with 50-tooth toothed ring design
- Neoprene boot material for driveline protection
- Axle nut included: M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- Overall compressed length: 34.61 in. (879 mm)
Product Details
TrakMotive HO-8446 is a CV axle shaft for the front right position on the Honda Insight. This axle is configured with 25 inboard splines and 23 outboard splines, a male inboard shaft connection, and a conventional outboard joint style. The included toothed ABS ring and 50-tooth count support the listed ABS application, while the neoprene boot helps protect the joint area during normal driveline operation. This part cross-references AX-25559 for the same application.
Common Repair Uses
- Restores driveline transfer when a worn axle causes vibration or clicking during turns
- Replaces a damaged CV joint or torn boot on the front right side
- Addresses axle noise, grease loss, or spline wear in the Honda Insight drivetrain
- Supports ABS-related replacement needs when the original tone ring is worn or damaged
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. Confirm the vehicle is a 2000-2006 Honda Insight, front right, and compare the existing ABS ring style and joint configuration to the replacement part. Proper torque procedures and axle nut staking should be followed during installation.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part and backs it with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Honda | Insight | Front Right | CV Axle Shaft |
| 2005 | Honda | Insight | Front Right | CV Axle Shaft |
| 2004 | Honda | Insight | Front Right | CV Axle Shaft |
| 2003 | Honda | Insight | Front Right | CV Axle Shaft |
| 2002 | Honda | Insight | Front Right | CV Axle Shaft |
| 2001 | Honda | Insight | Front Right | CV Axle Shaft |
| 2000 | Honda | Insight | Front Right | CV Axle Shaft |
