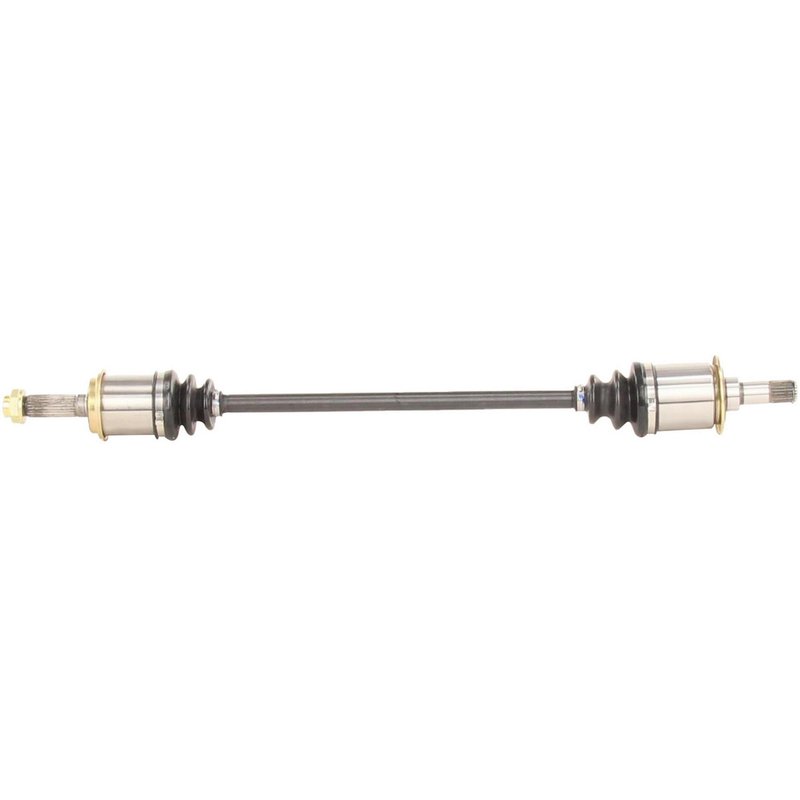

TrakMotive HO-8474 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-8474 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.22 |
| Overall Compressed Length (mm) | 767.5 |
| Product line | CV Axle Shaft |
| Fits | Honda · 1 vehicle |
New axle shaft. Built as a direct replacement for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied for a smoother install.
Cross-references TrakMotive HO-8474 and 42311T0A000 for the same application. See all 2.
TrakMotive HO-8474 CV Axle Shaft
The TrakMotive HO-8474 CV axle shaft is a new driveline replacement for the rear left position on the 2012 Honda CR-V. Built for direct-fit service, this Honda CR-V rear left CV axle shaft includes the axle nut and uses a neoprene boot for joint protection.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8474
- Fits 2012 Honda CR-V, rear left
- New axle shaft assembly
- Inboard joint type: Male
- Outboard joint type: Conventional
- 20 inboard splines and 23 outboard splines
- Neoprene boot material
- ABS tone ring not included
- Axle nut included; M22 x 1.5 thread, stake locking type
- Overall compressed length: 30.22 in (767.5 mm)
Product Details
TrakMotive HO-8474 is a CV axle shaft for the rear left side of the 2012 Honda CR-V. It is built as a new replacement assembly with a male inboard connection, conventional outboard joint design, and the specified spline counts for the application. The included axle nut uses a 31.8 mm hex size and M22 x 1.5 thread, which supports a proper service replacement on the 2012 Honda CR-V rear left driveline.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with application-specific fitment and OE-style service dimensions. This part cross-references 42311T0A000 for the same application.
Common Repair Symptoms
- Clicking or popping from the rear driveline during turns
- Vibration from a worn or damaged axle shaft
- Torn boot or grease loss at the CV joint
- Excessive play in the rear left axle assembly
- Noise after CV joint wear on a 2012 Honda CR-V
Installation Notes
Verify rear left fitment before installation on the 2012 Honda CR-V and confirm spline count, axle nut thread size, and compressed length against the original part. The axle nut is included, and the design does not use an ABS tone ring. Inspect adjacent seals, hub components, and mounting points during service to help ensure a clean axle replacement.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Honda | CR-V | AWD | Rear Left | CV Axle Shaft |
