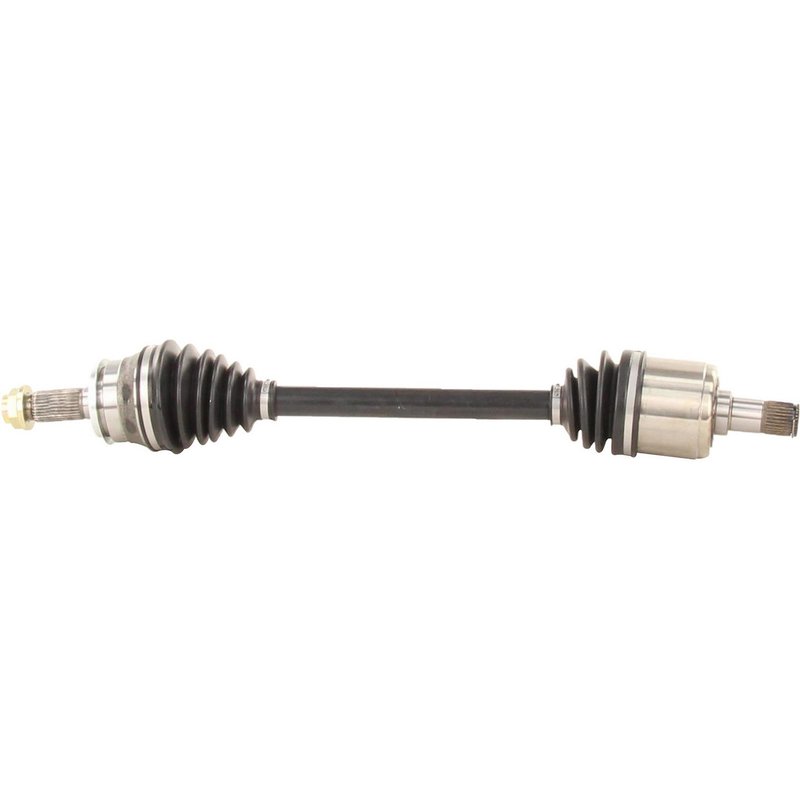

TrakMotive HO-8475 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8475 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.5 |
| Overall Compressed Length (mm) | 724 |
| Product line | CV Axle Shaft |
| Fits | Honda · 10 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves a separate parts run during installation.
Cross-references Cardone New 66-4307, Cardone Reman 60-4307 and Four Seasons 3948N for the same application. See all 12.
Honda Odyssey Front Left CV Axle Shaft
TrakMotive HO-8475 is a new CV axle shaft for the front left position on select 2011-2017 Honda Odyssey models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2011-2017 Honda Odyssey, front left
- TrakMotive CV Axle Shaft, part number HO-8475
- New replacement axle with 31 inboard splines and 30 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M26 x 1.5 thread, stake locking type, and hex head
- Overall compressed length: 28.5 in. (724 mm)
- No ABS tone ring included
Product Details
TrakMotive HO-8475 is a CV axle shaft for the front left side of the Honda Odyssey. It uses a male inboard shaft connection and a conventional outboard joint, with a compressed length of 28.5 inches to match the listed application. This part cross-references Cardone New 66-4307 and Cardone Reman 60-4307 for the same application.
As part of the TrakMotive CV Axle Shaft line, HO-8475 is built for driveline replacement work where the original axle has worn splines, damaged boots, or joint noise. It is listed for 2011-2017 Honda Odyssey front left service and is supplied as a new axle assembly.
Common Repair Applications
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear or imbalance
- Torn boot conditions that allow grease loss and contamination
- Axle spline wear or damaged shaft connection points
- Front left driveline noise on a 2011-2017 Honda Odyssey
Installation Notes
Verify the axle nut thread size, spline count, and compressed length before installation. This axle includes an axle nut with a 34.6 mm hex size and stake locking design. ABS tone ring is not included, so confirm the vehicle’s original axle configuration before ordering. Always inspect related seals, hub components, and suspension hardware during axle replacement.
Quality Assurance
TrakMotive lists HO-8475 as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty for this CV axle shaft.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Honda | Odyssey | — | Front Left | CV Axle Shaft |
| 2016 | Honda | Odyssey | — | Front Left | CV Axle Shaft |
| 2015 | Honda | Odyssey | — | Front Left | CV Axle Shaft |
| 2014 | Honda | Odyssey | — | Front Left | CV Axle Shaft |
| 2013 | Honda | Odyssey | Touring | Front Left | CV Axle Shaft |
| 2013 | Honda | Odyssey | Touring Elite | Front Left | CV Axle Shaft |
| 2012 | Honda | Odyssey | Touring | Front Left | CV Axle Shaft |
| 2012 | Honda | Odyssey | Touring Elite | Front Left | CV Axle Shaft |
| 2011 | Honda | Odyssey | Touring | Front Left | CV Axle Shaft |
| 2011 | Honda | Odyssey | Touring Elite | Front Left | CV Axle Shaft |
