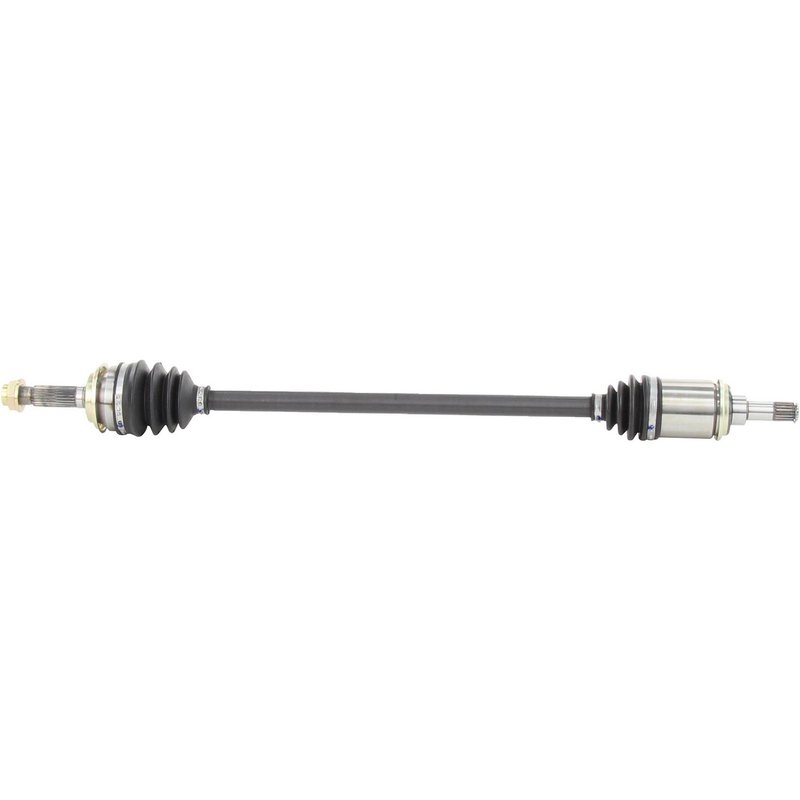

TrakMotive HO-8480 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8480 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.17 |
| Overall Compressed Length (mm) | 817 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New unit. Freshly manufactured for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a more complete installation.
Cross-references TrakMotive HO-8480 and 42310T0GA01 for the same application. See all 2.
Honda CR-V Rear Right CV Axle Shaft
TrakMotive HO-8480 is a new rear right CV axle shaft for select 2013-2016 Honda CR-V models. It is built for direct replacement service with the correct spline counts, compressed length, and axle nut specifications for the listed application.
Key Features
- Fits 2013-2016 Honda CR-V, rear right
- New CV axle shaft for driveline repair
- Overall compressed length: 32.17 in. (817 mm)
- Inboard connection: male, 20 splines
- Outboard connection: conventional, 23 splines
- Neoprene boot material for CV joint protection
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
TrakMotive CV Axle Shaft HO-8480 is engineered for the rear right position on 2013-2016 Honda CR-V vehicles. This axle shaft uses a male inboard shaft connection and a conventional outboard shaft connection, with a 20-spline inboard side and 23-spline outboard side to match the listed fitment. The neoprene boot helps protect the CV joints, while the included axle nut is specified with a hex head, M22 x 1.5 thread, and stake-style locking design. TrakMotive positions this CV axle shaft line as a new replacement solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes.
This part cross-references Honda 42310T0GA01 for the same application.
What This Part Helps Address
- Clicking or popping noises from the rear driveline during turns
- Vibration felt through the vehicle under acceleration
- Grease leakage from a damaged CV boot
- Wear-related axle shaft play or joint looseness
- Noise or binding from a failing rear right axle assembly
Installation Notes
Verify rear right fitment before installation on 2013-2016 Honda CR-V models. Confirm axle nut thread size, hex size, and locking style against the original hardware and service information. Because this axle does not include an ABS tone ring, compare the vehicle’s original rear axle configuration before ordering. Use proper torque procedures and inspect related seals, hubs, and suspension components during replacement.
Quality Assurance
TrakMotive HO-8480 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Honda | CR-V | — | Rear Right | CV Axle Shaft |
| 2015 | Honda | CR-V | — | Rear Right | CV Axle Shaft |
| 2014 | Honda | CR-V | AWD | Rear Right | CV Axle Shaft |
| 2013 | Honda | CR-V | AWD | Rear Right | CV Axle Shaft |
