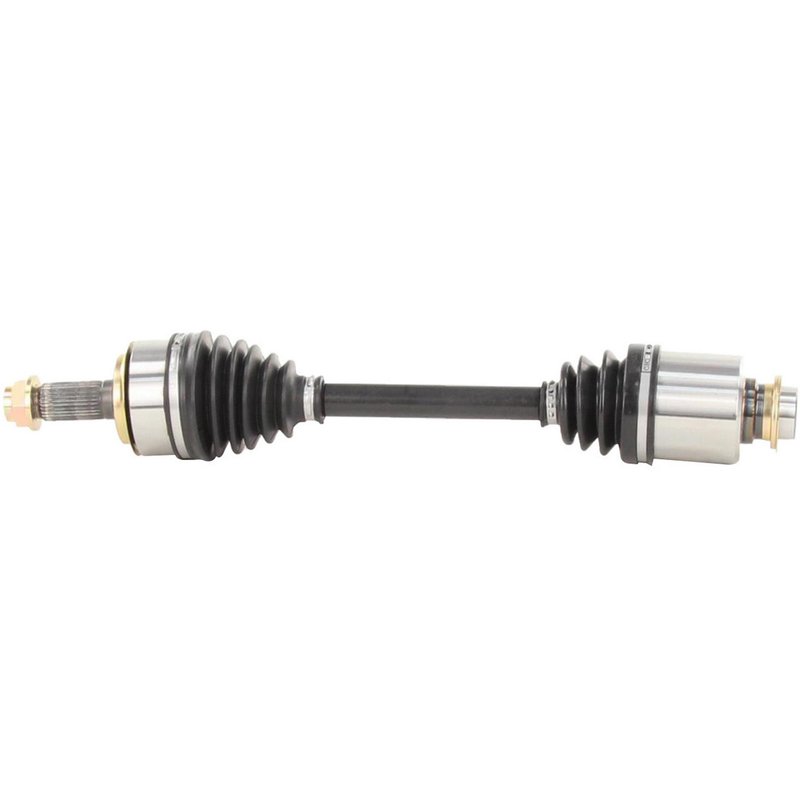

TrakMotive HO-8493 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8493 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.83 |
| Overall Compressed Length (mm) | 580 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward replacement.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
Axle nut included. Comes with a hex nut and stake locking type for secure installation.
Cross-references TrakMotive HO-8493, 44305T1WA01 and HO10624ER for the same application. See all 3.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-8493 is a new CV axle shaft for the front right position on select 2015-2016 Honda CR-V models. It is built for direct replacement service and includes the axle nut specified for this application.
Key Features
- Fits 2015-2016 Honda CR-V, front right
- TrakMotive CV Axle Shaft, part number HO-8493
- New axle assembly with conventional outboard joint design
- Female inboard joint and female inboard shaft connection style
- Neoprene boot material for drivetrain protection
- ABS tone ring not included
- Axle nut included with M26 x 1.5 thread size and stake locking type
- Overall compressed length: 22.83 in. (580 mm)
- 27-2 inboard splines and 30 outboard splines
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Honda CR-V and matches the listed spline counts, joint styles, and compressed length for the application. HO-8493 is a new replacement axle for driveline service where a worn or damaged front axle needs to be restored to proper operation. This part cross-references Honda OE numbers 44305T1WA01 and HO10624ER for the same application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this part built to the specified fitment and backed by the brand’s manufacturing standards. The manufacturer states the company is ISO 9001:1007 and TS 16949:2009 certified.
Common Repair Uses
- Restores a clicking or popping front axle condition during turns
- Addresses vibration from a worn CV joint or axle shaft
- Replaces a damaged boot or contaminated axle assembly
- Corrects driveline noise from the front right axle area
- Replaces a bent or worn axle on 2015-2016 Honda CR-V models
Installation Notes
Verify front right fitment before installation and confirm axle nut thread size, spline count, and compressed length against the removed part. The axle nut is included; use the correct stake-style tightening procedure during installation. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive HO-8493 is a new CV axle shaft supported by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification for its production standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Honda | CR-V | FWD | Front Right | CV Axle Shaft |
| 2016 | Honda | CR-V | AWD | Front Right | CV Axle Shaft |
| 2015 | Honda | CR-V | FWD | Front Right | CV Axle Shaft |
| 2015 | Honda | CR-V | AWD | Front Right | CV Axle Shaft |
