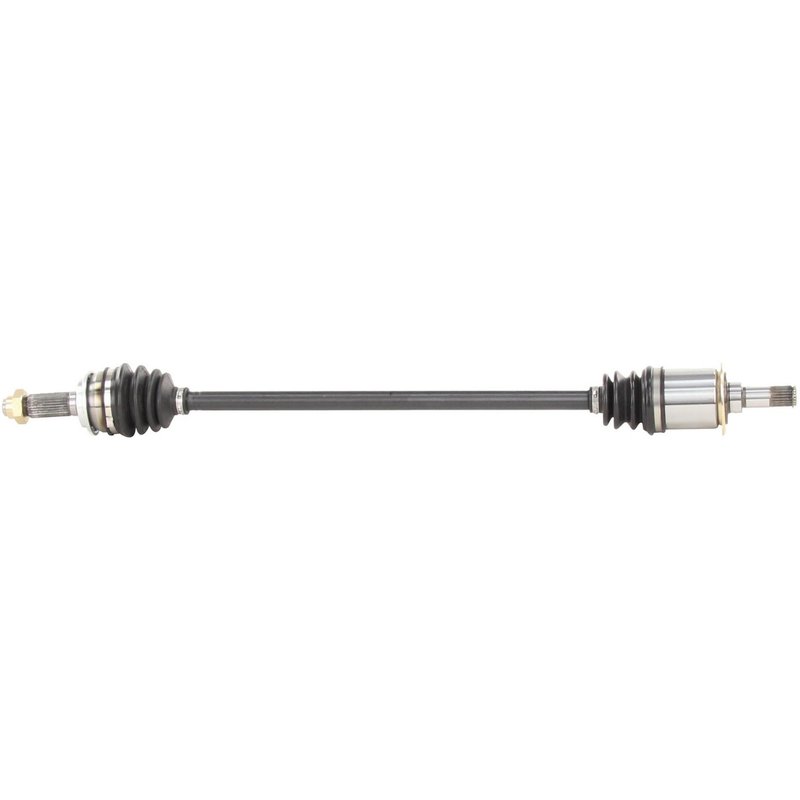

TrakMotive HO-8499 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8499 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.7 |
| Overall Compressed Length (mm) | 856 |
| Product line | CV Axle Shaft |
| Fits | Honda · 6 vehicles |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Stake-lock design for a secure installation.
Cross-references TrakMotive HO-8499, 60-4304 and 42310TP7A01 for the same application. See all 3.
TrakMotive HO-8499 CV Axle Shaft for Honda Rear Right
TrakMotive HO-8499 is a new CV axle shaft for rear right applications on select Honda Crosstour and Accord Crosstour models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- Fits 2012-2015 Honda Crosstour, rear right
- Fits 2010-2011 Honda Accord Crosstour, rear right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Male inboard shaft connection with 23 inboard splines
- Conventional outboard shaft connection with 28 outboard splines
- Includes axle nut with M24 x 1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 33.7 in (856 mm)
Product Details
TrakMotive HO-8499 is a CV axle shaft for the rear right position on 2012-2015 Honda Crosstour and 2010-2011 Honda Accord Crosstour. The axle is supplied new and uses a male inboard joint, conventional outboard joint, and a neoprene boot to support driveline operation in the specified rear right application. The included axle nut features a hex head, stake locking type, and M24 x 1.5 thread size. This part cross-references 60-4304 and 42310TP7A01 for the same application. HO-8499 is the part number to verify when matching the correct rear right axle for these Honda models.
Common Repair Symptoms
- Clicking or popping from the rear axle area during turns
- Vibration or shudder from the driveline under load
- Torn axle boot with grease leakage
- Excessive play or noise from a worn CV joint
- Loss of smooth power transfer to the rear wheel
Installation Notes
Confirm rear right fitment before ordering and match the axle nut thread, hex size, and locking style to the vehicle specification. Inspect the hub, seals, and surrounding suspension components during replacement, and verify spline count and compressed length against the original axle. For 2012-2015 Honda Crosstour and 2010-2011 Honda Accord Crosstour applications, HO-8499 should be compared directly to the removed part before installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Honda | Crosstour | AWD | Rear Right | CV Axle Shaft |
| 2014 | Honda | Crosstour | AWD | Rear Right | CV Axle Shaft |
| 2013 | Honda | Crosstour | AWD | Rear Right | CV Axle Shaft |
| 2012 | Honda | Crosstour | AWD | Rear Right | CV Axle Shaft |
| 2011 | Honda | Accord Crosstour | AWD | Rear Right | CV Axle Shaft |
| 2010 | Honda | Accord Crosstour | AWD | Rear Right | CV Axle Shaft |
