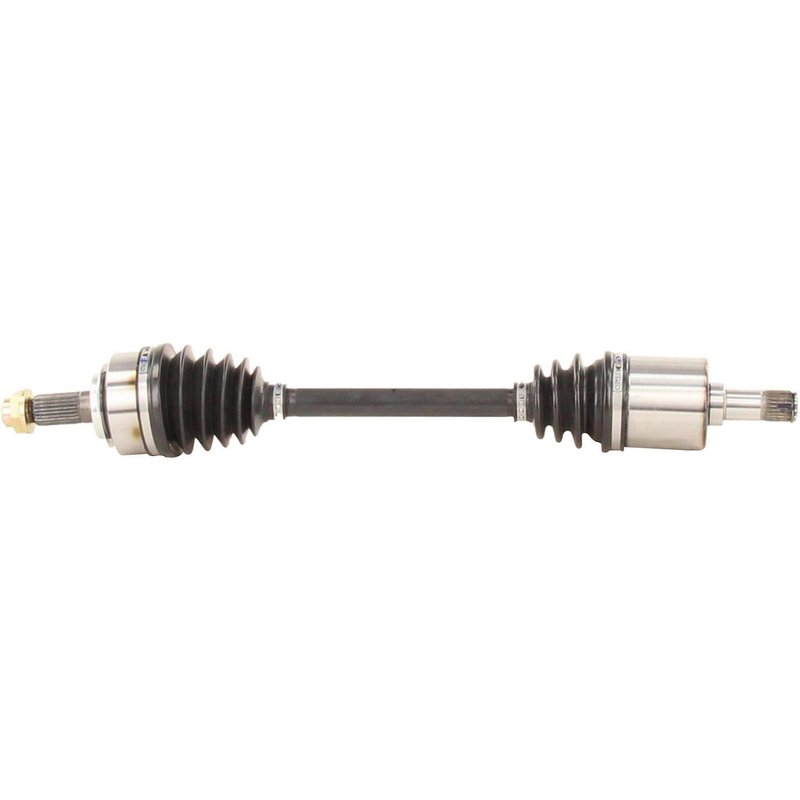

TrakMotive HO-8505 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8505 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.29 |
| Overall Compressed Length (mm) | 617 |
| Product line | CV Axle Shaft |
| Fits | Honda · 2 vehicles |
New shaft. Fresh replacement part for driveline service.
Neoprene boot. Durable material helps protect the joint from wear.
Axle nut included. Ready for a more complete installation.
Cross-references Cardone New 66-4246, Four Seasons 4051N and TrakMotive HO-8505 for the same application. See all 7.
Honda Fit Front Left CV Axle Shaft
TrakMotive HO-8505 is a new CV axle shaft for the front left position on 2007-2008 Honda Fit models. It is built for direct replacement service with the correct spline counts, axle nut specification, and compressed length for the listed application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with application-specific fitment and OE-style dimensions. HO-8505 follows that approach for Honda Fit front axle service.
- Fits 2007-2008 Honda Fit, front left
- New CV axle shaft for driveline repair
- Overall compressed length: 24.29 in. (617 mm)
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 25
- Outboard splines: 26
- Boot material: neoprene
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size
- No ABS tone ring included
This axle shaft is built for the front left Honda Fit driveline layout and uses a male inboard shaft connection with a conventional outboard connection. The HO-8505 part number is also referenced in interchange listings for the same application, including Cardone New 66-4246 and Four Seasons 4051N.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn axle boot
- Excessive play or noise in the front left driveline
- Failed axle nut or spline wear during axle replacement
Installation Notes
Verify front left fitment against the vehicle’s year and trim before installation. Confirm the axle nut thread size, hex size, and spline counts match the original part. Because this axle does not include an ABS tone ring, it is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive lists HO-8505 as a new part and states that its CV axle shafts are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification for its production standards.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Honda | Fit | Automatic | Front Left | CV Axle Shaft |
| 2007 | Honda | Fit | Automatic | Front Left | CV Axle Shaft |
