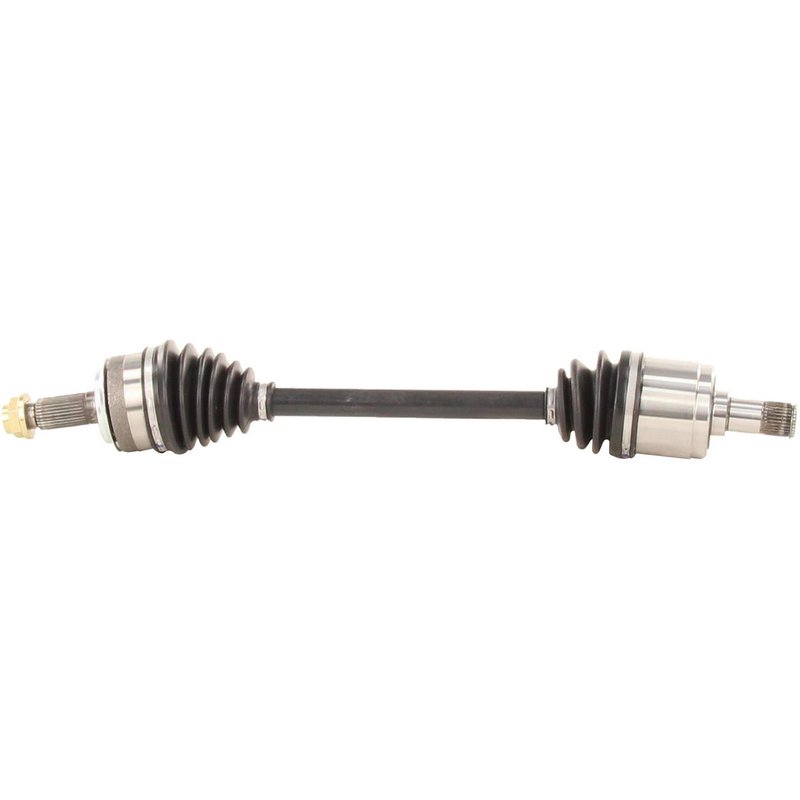

TrakMotive HO-8507 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8507 for Honda Crosstour

The TrakMotive CV Axle Shaft HO-8507 is designed specifically for Honda Crosstour models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Honda Crosstour
• Part Number: HO-8507
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced protection
• Hex head axle nut with 1 1/3 inch (34.6 mm) hex size
• Overall compressed length of 28.03 inches (712 mm)
• 31 inboard splines and 30 outboard splines for secure connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for precise fit and function. This line includes shafts with conventional outboard joints and male inboard joints, designed to meet OEM specifications. The HO-8507 model features a neoprene boot for durability and a stake-type locking axle nut to ensure secure installation.

Technical Specifications and Features

The HO-8507 CV axle shaft is a new component built to exacting standards. It features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type measuring 1 1/3 inches (34.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 4/7 inches (40 mm). The nut uses an M26 x 1.5 thread size and a stake locking mechanism to prevent loosening during operation. The inboard joint is male type with 31 splines, while the outboard joint is conventional with 30 splines, ensuring a secure and precise fit to the Honda Crosstour drivetrain. The overall compressed length of the shaft is 28.03 inches (712 mm), matching OEM dimensions for proper installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda Crosstour
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by replacing torn or degraded boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8507, ensure the stake locking axle nut is properly staked to secure the nut in place. Verify that the neoprene boot is seated correctly to prevent contamination. Use the correct torque specifications for the axle nut and inspect the splines for damage before installation. This part is compatible with Honda Crosstour models requiring a 28.03 inch compressed length axle shaft with male inboard and conventional outboard joints.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8507 is a new, remanufactured-quality component designed to meet or exceed OEM standards. It includes a stake locking axle nut and durable neoprene boot for long service life. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment for Honda Crosstour vehicles.
