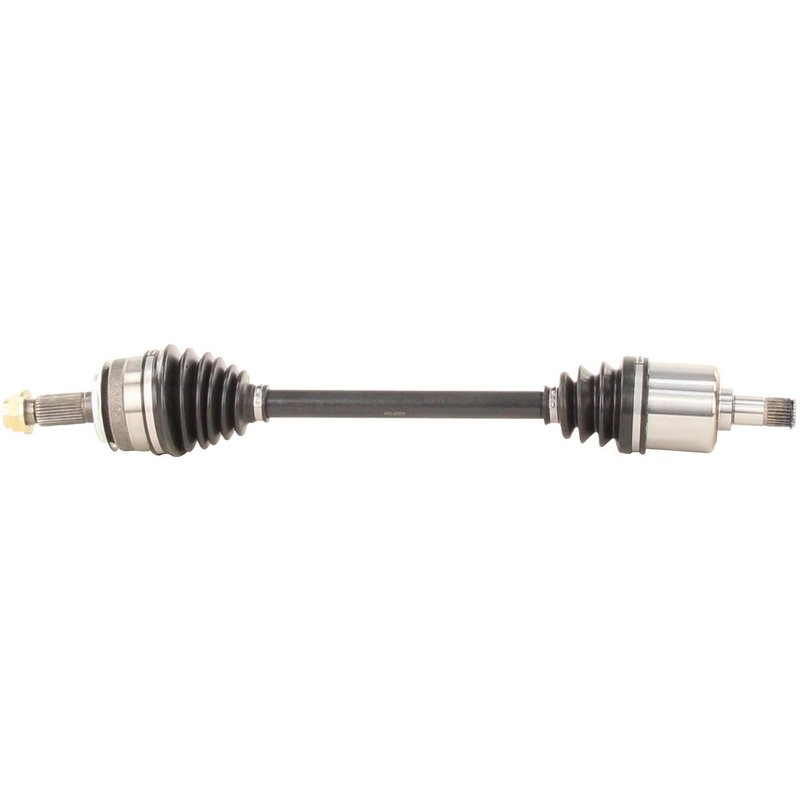

TrakMotive HO-8508 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8508 for Honda Crosstour

The TrakMotive CV Axle Shaft HO-8508 is designed specifically for Honda Crosstour models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Honda Crosstour
• Part Number: HO-8508
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Overall compressed length of 28.07 inches (713 mm)
• Hex head axle nut with 1 1/3 inch (34.6 mm) hex size
• New, not remanufactured

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable performance for driveline and axle components. This line includes components engineered to meet OEM specifications, such as the HO-8508, which features a neoprene boot and a stake-type locking axle nut to maintain secure connections and protect against contaminants.

Technical Specifications and Features

The HO-8508 CV axle shaft is equipped with a neoprene boot that offers resistance to wear and environmental factors. It features a male inboard joint type with 27 splines and a conventional outboard joint with 30 splines, ensuring proper engagement and smooth power transfer. The included axle nut has a hex head type measuring 1 1/3 inches (34.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 4/7 inches (40 mm). The axle nut thread size is M26*1.5, secured by a stake locking mechanism to prevent loosening during operation.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Honda Crosstour
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded boots
• Fixes axle shaft failure due to joint wear or spline damage
• Improves driveline stability and power transfer efficiency

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8508, ensure the axle nut is torqued to the manufacturer’s specifications and properly staked to secure the locking mechanism. Inspect the mating surfaces and splines for cleanliness and damage before installation. The neoprene boot should be checked for proper seating to prevent contamination and premature wear.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. The included axle nut is designed with a stake locking type to maintain secure attachment. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in automotive applications.
