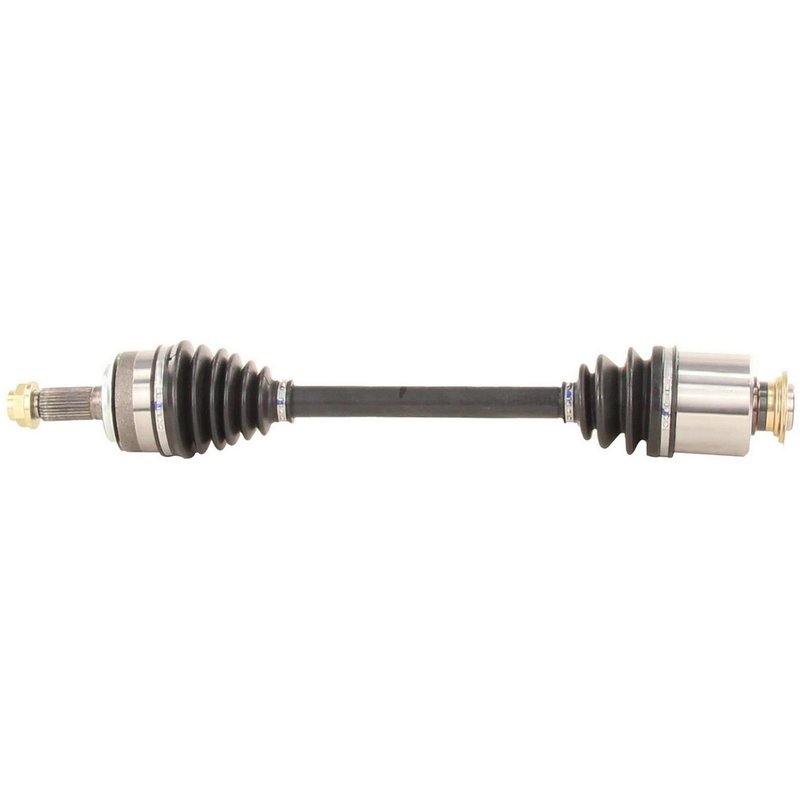

TrakMotive HO-8510 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8510 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.98 |
| Overall Compressed Length (mm) | 660 |
| Product line | CV Axle Shaft |
| Fits | Honda · 3 vehicles |
OE-style replacement. New CV axle shaft with included axle nut for a straightforward install.
Neoprene boot. Durable material helps protect the joint from road debris and moisture.
Certified quality. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive HO-8510, 44305TP6A20 and 40721171 for the same application. See all 4.
Honda Crosstour Front Right CV Axle Shaft
Restore smooth power transfer with this TrakMotive CV axle shaft for the front right position on select Honda Crosstour models. TrakMotive HO-8510 is a new OE-style driveline replacement built for 2013-2015 Honda Crosstour applications with the correct spline count, compressed length, and axle nut specifications.
Key Features
- TrakMotive CV Axle Shaft, part number HO-8510
- Fits 2013-2015 Honda Crosstour, front right
- New axle assembly with conventional outboard joint and female inboard joint
- Neoprene boot material for driveline protection
- Overall compressed length: 25.98 in. (660 mm)
- Axle nut included with hex head, stake locking type, M26 x 1.5 thread
- No ABS tone ring included
- Cross-reference part numbers include 44305TP6A20 and HO10605ER for the same application
Product Details
TrakMotive HO-8510 is a front right CV axle shaft engineered for the Honda Crosstour platform. It features a female inboard connection, conventional outboard joint design, 31-2 inboard splines, and 30 outboard splines to match the specified drivetrain configuration. The axle is supplied new and measures 25.98 inches compressed, helping ensure proper fitment in 2013, 2014, and 2015 Honda Crosstour models. This part number, HO-8510, is a direct replacement choice for owners servicing a worn or noisy front axle on the Honda Crosstour.
Common Repair Reasons
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration caused by axle wear
- Torn or deteriorated axle boot allowing grease loss
- Front right driveline noise from internal joint wear
- Axle nut or spline wear affecting proper wheel-end operation
Installation Notes
Verify front right fitment before installation and confirm axle nut thread size, spline count, and compressed length against the original part. The included axle nut uses a stake-locking design and M26 x 1.5 thread. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, supporting consistent production standards for driveline and axle components. HO-8510 is built for the specified Honda Crosstour front right application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Honda | Crosstour | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2014 | Honda | Crosstour | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2013 | Honda | Crosstour | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
