TrakMotivePart #: HO-8519

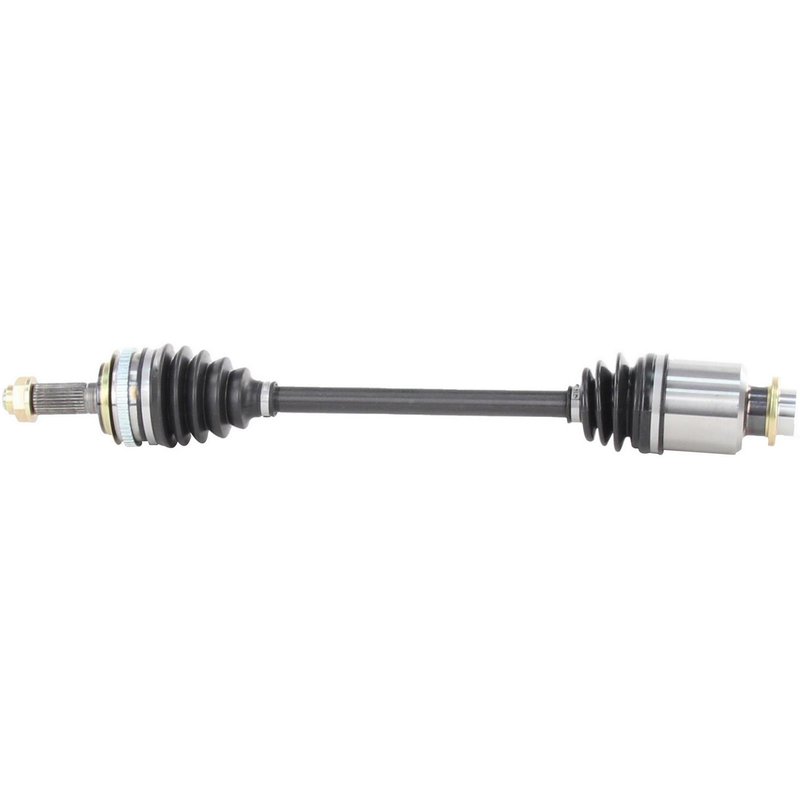

TrakMotive HO-8519 CV Axle Shaft - Rear Left
⚙️ 6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$178.29Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦CV Axle Shaft, Rear Left
🚗Fitment: Honda, Pilot
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive HO-8519 CV Axle Shaft - Rear Left
| Brand | TrakMotive |
| Part Number | HO-8519 |
| Position | CV Axle Shaft, Rear Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.61 |
| Overall Compressed Length (mm) | 676 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2007 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2006 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2005 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2004 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
| 2003 | Honda | Pilot | AWD | Rear Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
42311S9V00042311S9V01042311S9VA5060-427966-4279HO-8519
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
