OE Quality
60-Day Returns

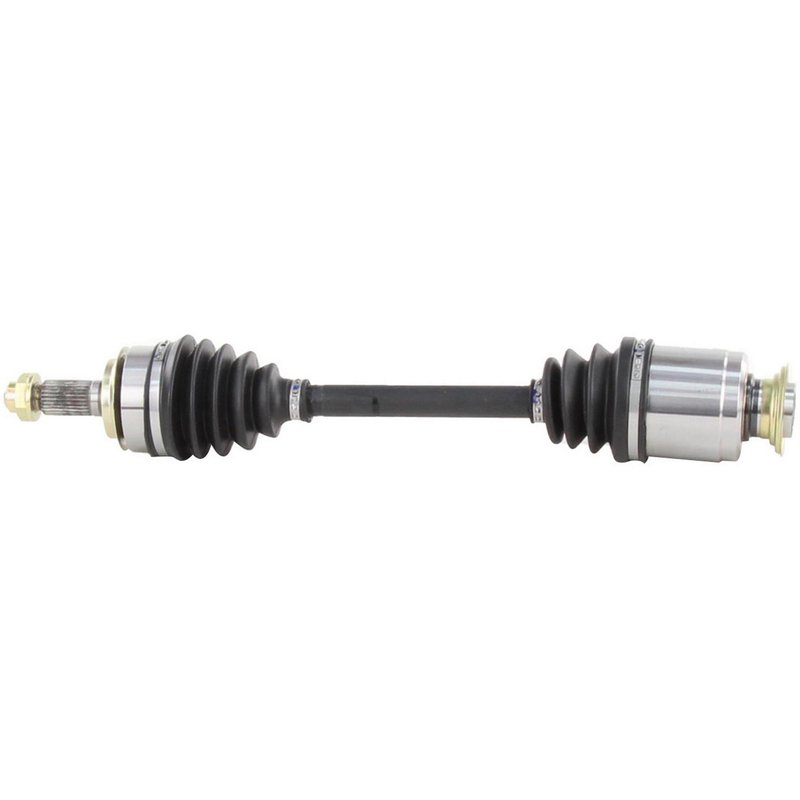

TrakMotive HO-8523 CV Axle Shaft - Front Right
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-8523 is a new CV axle shaft for the front right position on select 2014-2015 Honda Civic models. Built for driveline service, it includes a neoprene boot, a supplied axle nut, and the spline and joint configuration needed for the listed application.
Key Features
- Fits 2014-2015 Honda Civic, front right
- TrakMotive CV Axle Shaft, part number HO-8523
- New replacement axle shaft for driveline repair
- Neoprene boot material for joint protection
- Female inboard joint and conventional outboard joint design
- 27-2 inboard splines and 26 outboard splines
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is built for the front right side of the 2014-2015 Honda Civic and matches the listed spline count, joint style, and compressed length of 566 mm. The HO-8523 application uses a female inboard shaft connection and a spline-style outboard connection, making it a direct driveline replacement for the specified vehicle fitment. TrakMotive positions this CV axle shaft line as a new replacement option backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Cardone New 66-4250 and Cardone Reman 60-4250 for the same application.
Common Repair Uses
- Restores a worn or noisy front right CV axle on a Honda Civic
- Addresses clicking or popping during turns caused by joint wear
- Replaces a damaged axle shaft with boot or spline wear
- Corrects vibration or driveline shudder related to axle failure
- Supports repair after loss of grease from a compromised CV boot
Installation Notes
Verify front right fitment against the vehicle’s year and trim before installation. Confirm axle nut thread size, hex size, and locking style match the original hardware, and inspect the hub, seals, and surrounding suspension components during service. Because this axle does not include an ABS tone ring, confirm the vehicle’s original configuration before ordering.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and supports it with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing.
| Brand | TrakMotive |
|---|---|
| Part Number | HO-8523 |
| Position | CV Axle Shaft, Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.28 |
| Overall Compressed Length (mm) | 566 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2015 | Honda | Civic | Automatic CVT | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
| 2014 | Honda | Civic | Automatic CVT | 1.8L | L4 | GAS | Front Right | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
