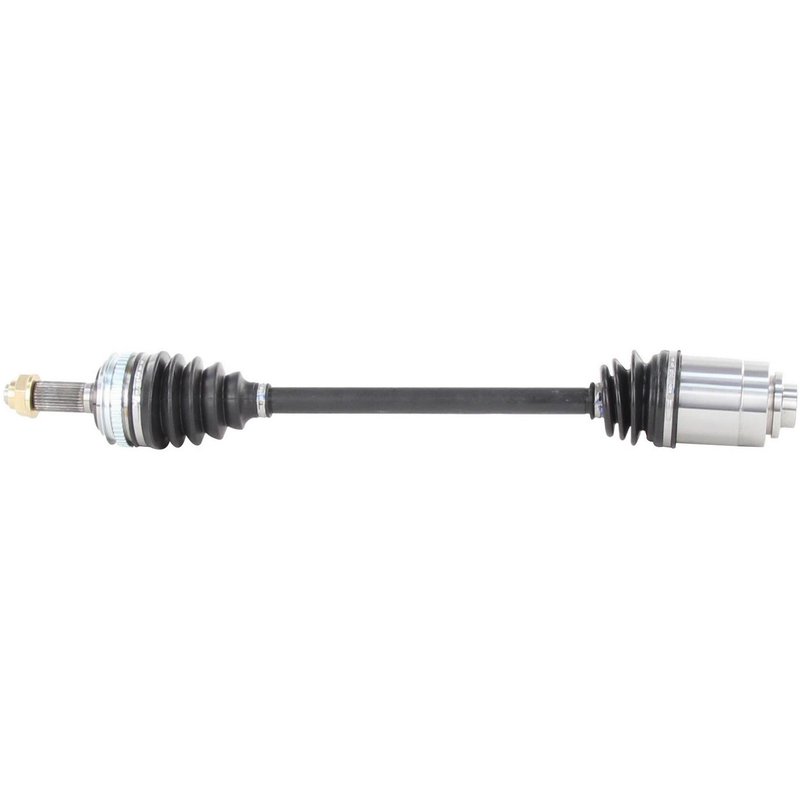

TrakMotive HO-8525 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft HO-8525 for Acura MDX

The TrakMotive CV Axle Shaft HO-8525 is engineered specifically for Acura MDX models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Acura MDX vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 50-tooth ABS ring and included tone ring
• Hex head axle nut with stake locking type included
• Overall compressed length of 28.07 inches (713 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft features a female inboard joint connection and a conventional outboard joint with spline connection style, ensuring compatibility and ease of installation. The inclusion of a toothed ABS ring with 50 teeth and an ABS tone ring supports accurate wheel speed sensor readings for the Acura MDX.

Technical Specifications and Features

This CV axle shaft (part number HO-8525) is designed with a neoprene boot material that resists wear and environmental damage. The axle nut included is a hex type with a 1 2/5 inch (35.6 mm) hex size, 1 inch (23 mm) height, and a length of 1 1/2 inches (37.53 mm). It uses a stake locking mechanism and has an M24*1.5 thread size for secure fastening. The inboard shaft has 29-2 splines, while the outboard shaft has 28 splines, ensuring a precise fit for the Acura MDX drivetrain. The overall compressed length of 28.07 inches (713 mm) matches OEM dimensions for proper installation.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Acura MDX
• Restoring proper ABS sensor function with included toothed ABS ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease boot tears or leaks with durable neoprene boot
• Ensuring secure axle nut fastening with included stake locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8525 on an Acura MDX, verify the axle nut torque specifications and use the included hex head axle nut with stake locking to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. Ensure the ABS tone ring is properly aligned to maintain accurate sensor readings. Professional installation is recommended to confirm proper spline engagement and joint connection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8525 is a new, remanufactured-quality replacement part designed to meet or exceed OEM standards. It includes all necessary components such as the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Acura MDX driveline applications.
