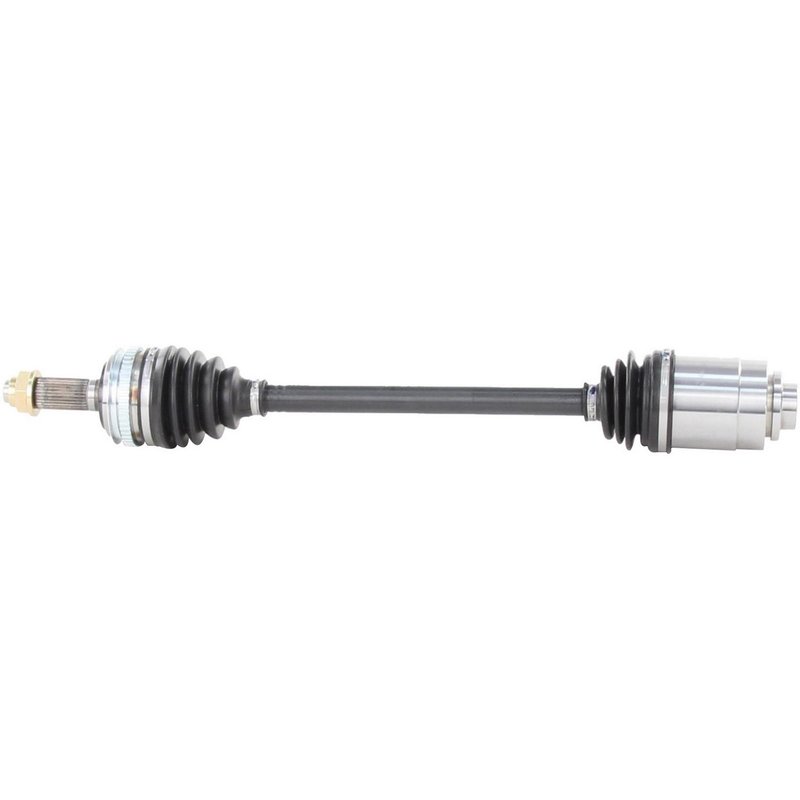

TrakMotive HO-8526 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-8526 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.93 |
| Overall Compressed Length (mm) | 684 |
| Product line | CV Axle Shaft |
| Fits | Acura · 6 vehicles |
New axle shaft. Built with a neoprene boot for durable, flexible protection.
ABS tone ring included. Toothed ring with 50 teeth for accurate wheel speed signal support.
Hardware included. Comes with the axle nut for a complete installation.
Cross-references Cardone Reman 60-4204, TrakMotive HO-8526 and 42311S3VA01 for the same application. See all 4.
Rear Left CV Axle Shaft for Acura MDX
TrakMotive HO-8526 is a new CV axle shaft for the rear left position on 2001-2006 Acura MDX models. Built for driveline service, it includes a toothed ABS tone ring with 50 teeth and a neoprene boot for dependable fitment in the specified application.
Key Features
- Fits 2001-2006 Acura MDX, rear left
- New CV axle shaft for driveline and axle repair
- ABS tone ring included; toothed ring with 50 teeth
- Neoprene boot material
- Inboard joint type: female
- Outboard joint type: conventional
- Axle nut included with stake-locking design
- Overall compressed length: 26.93 in. (684 mm)
- TrakMotive part number HO-8526
Detailed Description
TrakMotive HO-8526 is a CV axle shaft for the rear left side of the 2001-2006 Acura MDX. It features a female inboard shaft connection, spline outboard connection, and a conventional outboard joint layout to match the listed application. The axle includes a toothed ABS ring and tone ring, making it a direct replacement choice for vehicles equipped with the specified rear axle configuration. TrakMotive HO-8526 is also referenced by OE-style part numbers 42311S3VA01 and 42311S3VA02, and cross-references Cardone Reman 60-4204 for the same application.
The TrakMotive CV Axle Shaft product line focuses on replacement driveline components built for specific vehicle fitment. For Acura MDX rear axle service, HO-8526 provides the dimensions and connection styles needed for the listed years and position.
What This Part Helps Address
- Clicking or popping noises during turns or suspension movement
- Vibration felt through the driveline under acceleration
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a worn tone ring assembly
- Axle shaft wear affecting rear left driveline operation
Installation Notes and Tips
Verify rear left fitment before installation and confirm axle nut thread size M24x1.5, hex size 35.6 mm, and stake-locking style against the vehicle’s service requirements. Check spline counts, compressed length, and ABS ring configuration against the original axle before assembly. Inspect related seals, hub surfaces, and suspension components during replacement to help ensure proper operation.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for this CV axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Acura | MDX | Rear Left | CV Axle Shaft |
| 2005 | Acura | MDX | Rear Left | CV Axle Shaft |
| 2004 | Acura | MDX | Rear Left | CV Axle Shaft |
| 2003 | Acura | MDX | Rear Left | CV Axle Shaft |
| 2002 | Acura | MDX | Rear Left | CV Axle Shaft |
| 2001 | Acura | MDX | Rear Left | CV Axle Shaft |
