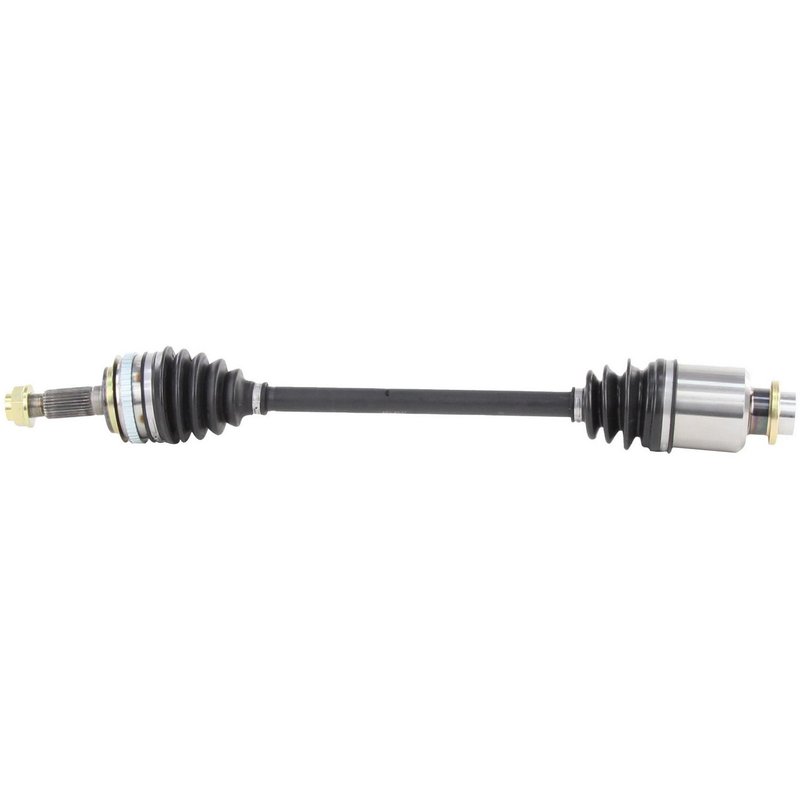

TrakMotive HO-8527 CV Axle Shaft - Rear Right

TrakMotive HO-8527 CV Axle Shaft

The TrakMotive HO-8527 CV axle shaft is a direct-fit driveline replacement for the rear right position on select Honda Pilot models. Built as a new axle assembly, it is engineered for consistent power transfer, smooth operation, and dependable fitment on 2003-2008 Honda Pilot applications.

Key Features

• Fits 2003-2008 Honda Pilot, rear right
• New CV axle shaft for driveline service and replacement
• Neoprene boot material for joint protection
• ABS tone ring included with 50-tooth toothed ring
• Female inboard joint with spline outboard shaft connection
• Includes axle nut with M24 x 1.5 thread, stake locking type, and 35.6 mm hex size
• Overall compressed length: 27.76 in. (705 mm)
• Part number HO-8527 for ordering and cross-reference

Detailed Description

TrakMotive HO-8527 is a CV axle shaft for the rear right side of the 2003-2008 Honda Pilot. It uses a conventional outboard joint, a female inboard joint, and a neoprene boot to help protect the internal components from road contamination. The axle includes an ABS tone ring with a 50-tooth toothed design, making it suitable for vehicles equipped with ABS-related wheel speed sensing requirements. The axle nut is included and uses an M24 x 1.5 thread with a stake-style locking design. This part cross-references Cardone New 66-4280 and Cardone Reman 60-4280 for the same application.

The HO-8527 is built for Honda Pilot rear right driveline service where a worn axle can cause vibration, clicking, or loss of smooth power delivery. The 2003-2008 Honda Pilot fitment makes this a focused replacement for owners and technicians looking for the correct rear axle shaft by vehicle, position, and part number HO-8527.

Common Issues This Part Can Address

• Clicking or popping noises from the rear axle area during acceleration or turning
• Vibration felt through the driveline at speed
• Boot wear or joint contamination from damaged axle protection
• Uneven power transfer from a worn CV joint assembly
• ABS-related drivability concerns when the tone ring or axle assembly is worn

Installation Notes and Tips

Verify rear right fitment before installation and confirm axle nut thread size, spline count, and ABS tone ring requirements against the original part. Inspect related suspension and hub components during replacement, and torque fasteners to the vehicle manufacturer’s specifications. Because this axle is listed for ABS and non-ABS applications unless otherwise noted, confirm the vehicle’s equipment before ordering.

Quality Assurance

TrakMotive identifies this CV axle shaft as a new replacement part and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the HO-8527 axle shaft.
