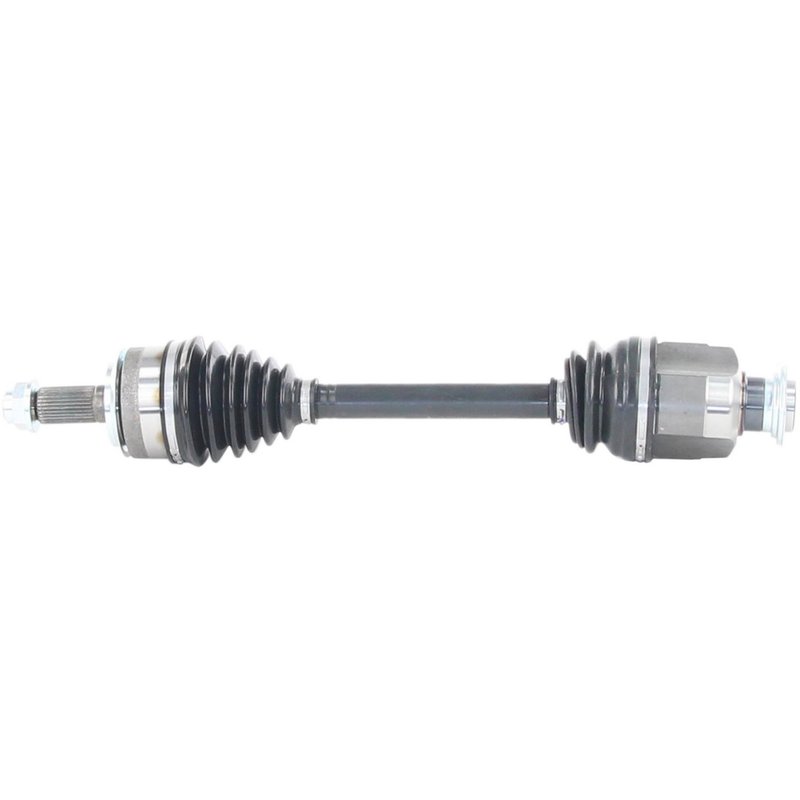

TrakMotive HO-8541 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8541 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.29 |
| Overall Compressed Length (mm) | 617 |
| Product line | CV Axle Shaft |
| Fits | Honda · 3 vehicles |
New CV axle shaft. Built as a fresh replacement for driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a hex nut and stake lock.
Cross-references TrakMotive HO-8541, 44305T2BA21 and HO10620ER for the same application. See all 3.
Honda Accord Front Right CV Axle Shaft
Restore driveline performance with this TrakMotive CV axle shaft for the front right position on select 2015-2017 Honda Accord models. TrakMotive HO-8541 is a new CV axle assembly built for direct replacement service, with application-specific spline counts and a neoprene boot for dependable operation.
Key Features
- Fits 2015-2017 Honda Accord, front right
- TrakMotive CV Axle Shaft, part number HO-8541
- New axle assembly for driveline repair
- Female inboard joint and female inboard shaft connection style
- Conventional outboard joint with spline shaft connection
- Neoprene boot material for flexible joint protection
- Includes axle nut with stake-style locking type
- No ABS tone ring included
- Overall compressed length: 24.29 in. (617 mm)
Detailed Description
TrakMotive HO-8541 is a CV axle shaft for the front right side of the 2015-2017 Honda Accord. It is configured as a new replacement axle with 31-2 inboard splines and 30 outboard splines, plus an included M26 x 1.5 axle nut. The axle uses a hex-head nut design with a stake locking type and a 34.6 mm hex size. TrakMotive’s CV axle shaft line focuses on direct-fit driveline replacement parts for passenger vehicles, and this application is built around the dimensions and joint styles needed for the listed Accord fitment.
This part cross-references Honda OE numbers 44305T2BA21 and HO10620ER for the same application.
Common Repair Uses
- Front right axle noise during acceleration or turning
- Vibration caused by worn CV joints
- Clicking or popping from a damaged outer joint
- Torn boot or grease loss at the axle assembly
- Driveline play from a worn replacement axle
Installation Notes and Tips
Verify front right fitment against the vehicle’s original axle dimensions, spline counts, and axle nut specification before installation. The axle nut is included and uses a stake-style locking design, so follow the vehicle service procedure for proper tightening and staking. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2016 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2015 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
