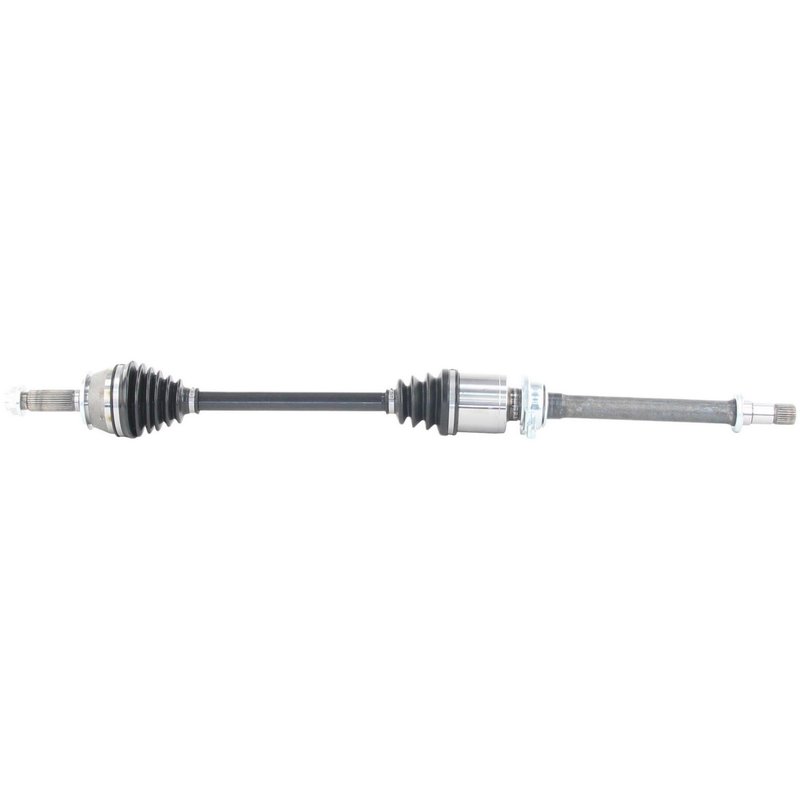

TrakMotive HO-8543 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8543 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.81 |
| Overall Compressed Length (mm) | 1036.5 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Comes with a hex nut and stake locking type for installation.
Cross-references TrakMotive HO-8543, 60-4336 and 40721163 for the same application. See all 4.
Honda Pilot Front Right CV Axle Shaft
TrakMotive HO-8543 is a new CV axle shaft for the front right position on select 2012-2015 Honda Pilot models. Built for driveline service, it includes the axle nut and uses a neoprene boot for joint protection.
Key Features
- Fits 2012-2015 Honda Pilot, front right
- TrakMotive CV Axle Shaft, part number HO-8543
- New axle assembly with 29 inboard splines and 30 outboard splines
- Male inboard joint with conventional outboard joint design
- Neoprene boot material for flexible sealing
- Axle nut included; M26 x 1.5 thread, stake-lock type
- No ABS tone ring included
- Overall compressed length: 40.81 in. (1036.5 mm)
Product Details
This TrakMotive CV axle shaft is part of the CV Axle Shaft line and is built for direct replacement service on the front right side of the Honda Pilot. The HO-8543 application uses a spline-style shaft connection, a male inboard shaft connection, and a conventional outboard joint layout to match the listed vehicle fitment. TrakMotive manufactures this axle as a new component and notes ISO 9001:1007 and TS 16949:2009 certified company processes in its product literature.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn or leaking axle boot conditions
- Loss of driveline smoothness at the front right wheel position
- Axle wear related to high-mileage Honda Pilot service
Installation Notes
Verify the front right position, spline count, axle nut thread size, and overall compressed length before installation. This axle includes an axle nut and does not include an ABS tone ring. Confirm that the vehicle matches the listed 2012-2015 Honda Pilot fitment before replacing the original shaft.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:1007 and TS 16949:2009 certified company standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Honda | Pilot | Front Right | CV Axle Shaft |
| 2014 | Honda | Pilot | Front Right | CV Axle Shaft |
| 2013 | Honda | Pilot | Front Right | CV Axle Shaft |
| 2012 | Honda | Pilot | Front Right | CV Axle Shaft |
