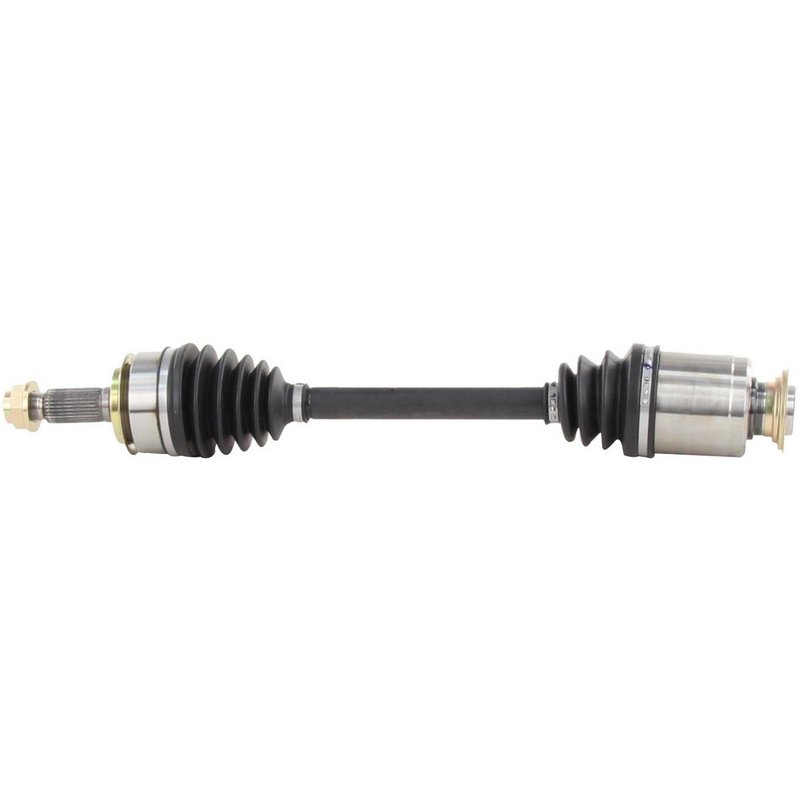

TrakMotive HO-8546 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8546 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.86 |
| Overall Compressed Length (mm) | 606 |
| Product line | CV Axle Shaft |
| Fits | Honda · 10 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a cleaner installation.
Cross-references TrakMotive HO-8546 for the same application. See all 1.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-8546 is a new CV axle shaft for the front right position on select Honda Civic models. It is built with a neoprene boot, a female inboard connection, and a spline-style outboard shaft connection for direct driveline replacement service.
Use this CV axle shaft when servicing a 2016-2019 Honda Civic, front right, or a 2020-2021 Honda Civic, front right. The HO-8546 part number is also useful when searching for a Honda Civic front right CV axle shaft replacement by application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8546
- Fits 2016-2019 Honda Civic, front right
- Fits 2020-2021 Honda Civic, front right
- New axle shaft construction
- Neoprene boot material
- Female inboard joint and female inboard shaft connection
- Conventional outboard joint with spline shaft connection
- Axle nut included with M24 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 23.86 in. (606 mm)
Product Details
TrakMotive HO-8546 is a CV axle shaft for the front right side of the Honda Civic. It is specified with 27-2 inboard splines, 28 outboard splines, a hex axle nut head, and a stake-style locking nut. The axle nut measures 35.6 mm across the hex and is included for the application. This part number, HO-8546, is a direct-fit driveline replacement for the listed Civic model years.
TrakMotive’s CV axle shaft line focuses on replacement driveline components for passenger vehicles, and this application is built for the Honda Civic front right position. If you are searching for a Honda Civic CV axle shaft, Honda Civic front right axle, or HO-8546 replacement, this part matches the confirmed fitment shown here.
Common Repair Uses
- Replacing a worn or noisy front right CV axle on a Honda Civic
- Addressing clicking or popping during turns
- Correcting vibration caused by axle wear or joint damage
- Restoring driveline operation after boot failure or grease loss
- Replacing a damaged axle during front suspension or driveline service
Installation Notes
Before installation, inspect the intermediate shaft on 2020-2021 Honda Civic applications and replace it if damage is present. Confirm spline count, axle nut thread size, and front right position before assembly. Because this axle uses a stake-style axle nut, follow the vehicle service procedure for proper nut retention and final torque.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this replacement part.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2019 | Honda | Civic | Coupe | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2018 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2018 | Honda | Civic | Coupe | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2017 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2017 | Honda | Civic | Coupe | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2016 | Honda | Civic | Sedan | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
| 2016 | Honda | Civic | Coupe | Automatic CVT | 1.5L | L4 | Front Right | CV Axle Shaft |
