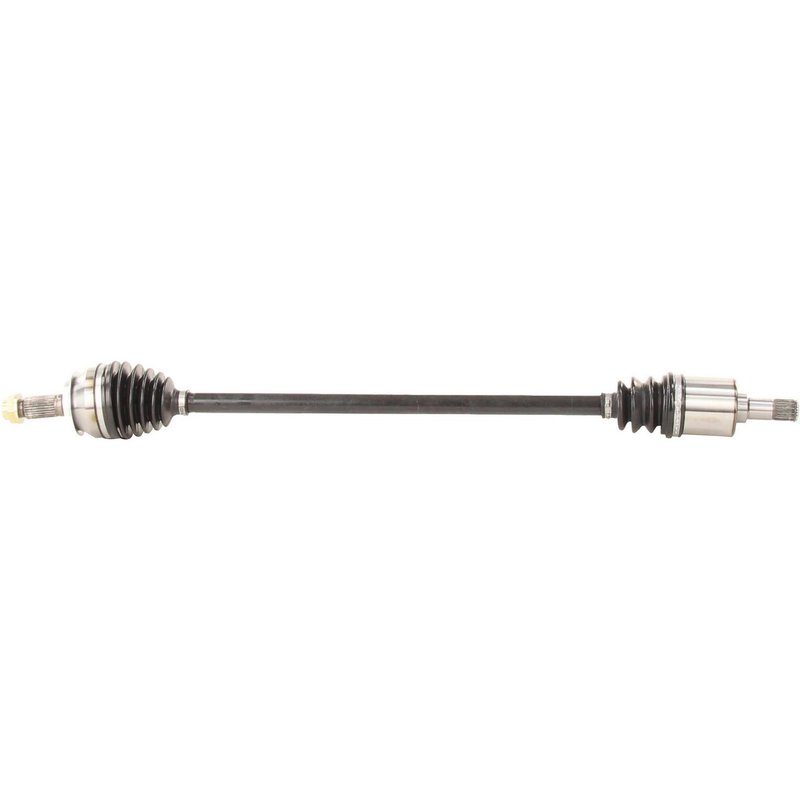

TrakMotive HO-8553 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8553 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35.59 |
| Overall Compressed Length (mm) | 904 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 18 vehicles |
OE-style replacement. New CV axle shaft with included axle nut for a straightforward install.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO 9001 and TS 16949 certified. Built by a company with recognized quality management standards.
Cross-references TrakMotive HO-8553, 40721175 and HO10613E for the same application. See all 3.
Honda Front Right CV Axle Shaft
TrakMotive HO-8553 is a new AAR CV axle shaft for front right applications on select Honda Fit models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint to match the OE AAR design used on covered vehicles.
The TrakMotive AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for Honda applications. HO-8553 follows the specified spline counts, compressed length, and axle nut details needed for a proper front right axle service on the listed Honda Fit vehicles.
- Fits 2015-2018 Honda Fit, front right, updated design; AAR CV Axle Shaft
- Fits 2019-2020 Honda Fit, front right, OE AAR design; AAR CV Axle Shaft
- New CV axle shaft with neoprene boot construction
- Male inboard shaft connection with 25 inboard splines
- Conventional outboard joint with spline connection and 26 outboard splines
- Overall compressed length: 35.59 in. (904 mm)
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- ABS tone ring not included
HO-8553 is a front right Honda Fit CV axle shaft replacement for vehicles that need OE-style driveline geometry and spline matching. Use it when replacing a worn or damaged axle on 2015-2020 Honda Fit models listed above, including 2015-2018 updated design applications and 2019-2020 OE AAR design applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear or imbalance
- Torn boot or grease loss at the axle assembly
- Front right driveline noise during load changes
- Axle spline or joint wear affecting smooth power transfer
Installation Notes
Verify front right fitment by year, model, and design note before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification, and inspect the hub, seals, and mating splines during service. Because ABS tone ring is not included, confirm the vehicle does not require an axle-mounted tone ring for the application.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and identifies the product line under its AAR CV Axle Shaft range. The manufacturer states the company is ISO 9001:1007 and TS 16949:2009 certified and backs this part with a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Honda | Fit | — | Manual | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Honda | Fit | — | Manual | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | Sport | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | LX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | EX-L | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | EX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | DX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | LX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | EX-L | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | EX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | DX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | LX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | EX-L | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | EX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | LX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | EX-L | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | EX | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | DX | — | Front Right | Updated Design; AAR CV Axle Shaft |
