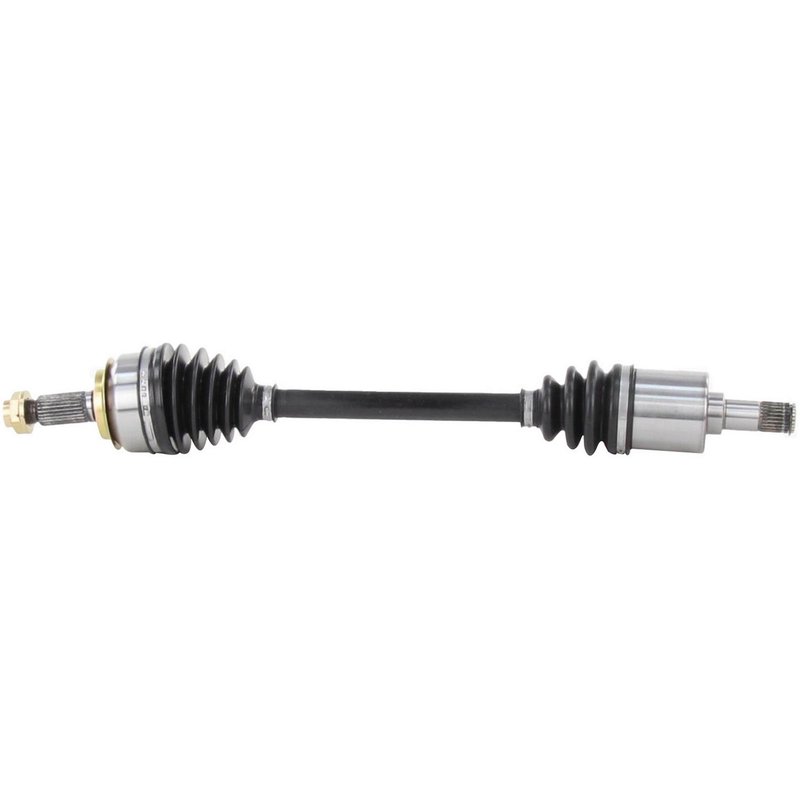

TrakMotive HO-8554 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8554 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25 |
| Overall Compressed Length (mm) | 635 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 18 vehicles |
New. A fresh CV axle shaft built for dependable replacement service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Includes axle nut. Conveniently supplied for a more complete installation.
Cross-references TrakMotive HO-8554, 40721174 and HO10612E for the same application. See all 3.
Honda Front Left CV Axle Shaft
TrakMotive HO-8554 is a new AAR CV axle shaft for front left applications on select Honda models. It is built for 2015-2020 Honda Fit fitment and includes the axle nut for a direct replacement on the specified driveline position.
Key Features
- TrakMotive AAR CV Axle Shaft, part number HO-8554
- Fits 2015-2018 Honda Fit, front left, updated design
- Fits 2019-2020 Honda Fit, front left, OE AAR design
- New axle shaft with neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type with spline shaft connection
- 25 in. overall compressed length
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- ABS tone ring not included
Product Details
The TrakMotive HO-8554 CV axle shaft is engineered for front left driveline service on the Honda Fit. This AAR CV axle shaft uses a male inboard joint, a conventional outboard joint, and a neoprene boot to support consistent operation in the specified application. The axle is a new unit, measures 25 inches compressed length, and is supplied with the correct axle nut for the listed fitment. This part cross-references 40721174 and HO10612E for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged CV boot
- Noise from a worn front left axle assembly
- Driveline play caused by spline or joint wear
Installation Notes
Confirm front left fitment before installation on your Honda Fit. Verify axle nut thread size, hex size, and locking style against the vehicle specification, and inspect the hub, seals, and surrounding suspension components during replacement. Because ABS tone ring is not included, compare the vehicle’s original axle configuration before installation.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Honda | Fit | — | Manual | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Honda | Fit | — | Manual | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | Sport | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | LX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | EX-L | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | EX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Honda | Fit | DX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | LX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | EX-L | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | EX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Fit | DX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | LX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | EX-L | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Fit | EX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | LX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | EX-L | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | EX | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Fit | DX | — | Front Left | Updated Design; AAR CV Axle Shaft |
