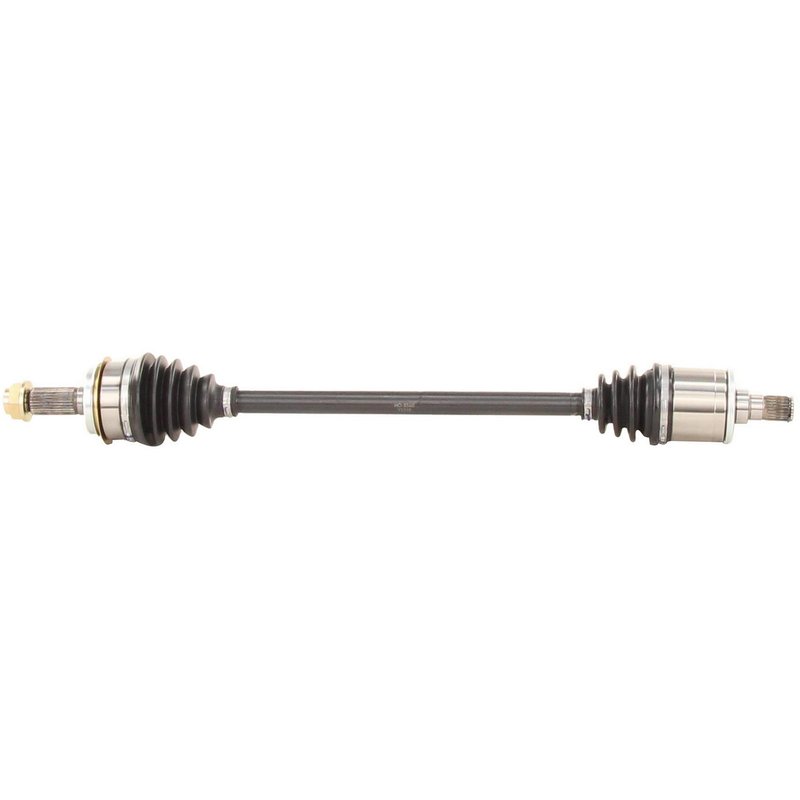

TrakMotive HO-8560 CV Axle Shaft - Rear Left
TrakMotive CV Axle Shaft for Honda Passport and Pilot
The TrakMotive CV Axle Shaft HO-8560 is designed specifically for Honda Passport and Pilot models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.
Key Features of the HO-8560 CV Axle Shaft
- Compatible with Honda Passport and Pilot models
- Includes axle nut with stake locking type for secure installation
- Axle nut hex size: 1.4 inches (35.6 mm) with hex head type
- Neoprene boot material for enhanced joint protection
- Inboard joint type: Male with 25 splines
- Outboard joint type: Conventional with 28 splines
- Overall compressed length: 30.24 inches (768 mm)
- Axle nut thread size: M24*1.5
About the TrakMotive CV Axle Shaft Product Line
The TrakMotive CV Axle Shaft line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This product line emphasizes quality materials such as neoprene boots and robust spline connections to ensure long-lasting performance. The HO-8560 model is part of this line, engineered to meet the specific requirements of Honda Passport and Pilot vehicles.
Detailed Product Description
The HO-8560 CV Axle Shaft from TrakMotive is a new replacement part designed to restore driveline function in compatible Honda Passport and Pilot models. It features a neoprene boot that offers resistance to wear and environmental damage, protecting the CV joints. The inboard joint uses a male spline connection with 25 splines, while the outboard joint is conventional with 28 splines, ensuring a secure and precise fit. The included axle nut has a hex head type with a stake locking mechanism, providing a reliable fastening solution. With an overall compressed length of 30.24 inches (768 mm), this axle shaft matches OEM specifications for proper installation and operation.
Common Applications and Issues Addressed
- Replacement for worn or damaged CV axle shafts on Honda Passport and Pilot
- Eliminates clicking or popping noises during turns caused by failing CV joints
- Resolves vibration or shuddering issues related to axle shaft wear
- Prevents grease leaks by restoring boot integrity with durable neoprene material
- Addresses axle nut loosening with included stake locking axle nut
Installation Notes and Tips
Ensure compatibility with your specific Honda Passport or Pilot model year before installation. Use the included axle nut with the specified M24*1.5 thread size and stake locking type to secure the axle shaft properly. Verify the spline counts (25 inboard, 28 outboard) match your vehicle’s requirements. It is recommended to inspect related suspension and driveline components during installation for overall system integrity.
Quality Assurance and Warranty
The TrakMotive HO-8560 CV Axle Shaft is a new, remanufactured-quality replacement part designed to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for Honda Passport and Pilot vehicles.
| Brand | TrakMotive |
| Part Number | HO-8560 |
| Position | CV Axle Shaft, Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.48 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.24 |
| Overall Compressed Length (mm) | 768 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Honda | Passport | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Honda | Pilot | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Honda | Passport | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Honda | Pilot | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Honda | Passport | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Honda | Pilot | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Honda | Passport | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Honda | Pilot | Rear Left | CV Axle Shaft |
| 2018 | Honda | Pilot | Rear Left | CV Axle Shaft |
| 2017 | Honda | Pilot | Rear Left | CV Axle Shaft |
| 2016 | Honda | Pilot | Rear Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
