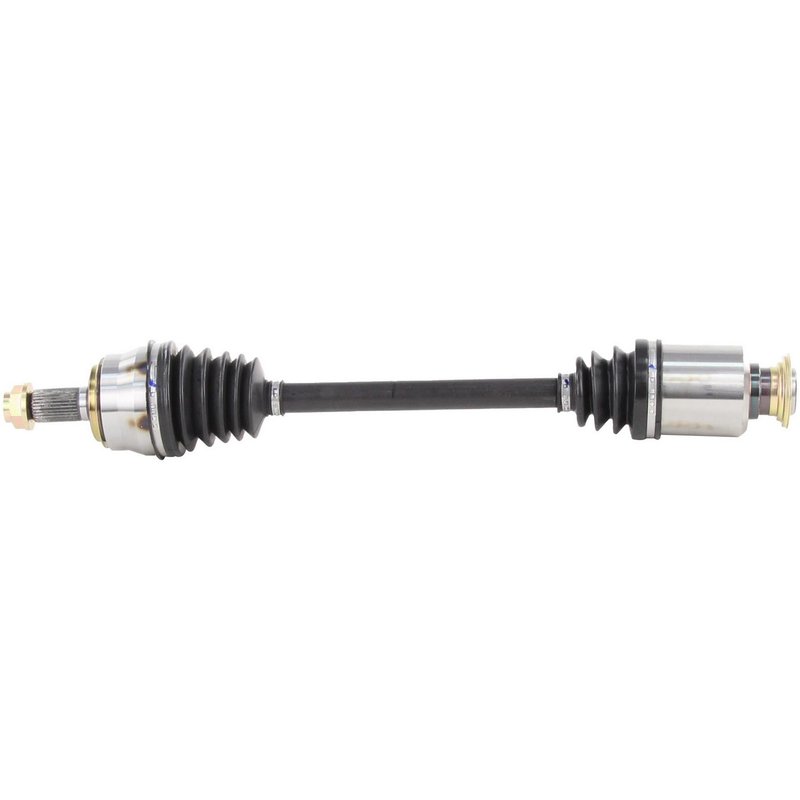

TrakMotive HO-8562 CV Axle Shaft - Front Right
TrakMotive AAR CV Axle Shaft HO-8562 Overview
The TrakMotive AAR CV Axle Shaft HO-8562 is designed for reliable driveline performance in select Acura and Honda models. Engineered to meet OEM specifications, this CV axle shaft ensures proper fit and function for vehicles like the Acura MDX, Honda Passport, Pilot, and TLX.
- Compatible with Acura MDX, Honda Passport, Pilot, and TLX
- Includes axle nut with hex head and stake locking type
- Neoprene boot material for durability and protection
- Inboard female joint with spline shaft connection
- Overall compressed length of 26.44 inches (671.5 mm)
Key Features and Specifications
This CV axle shaft features a hex head axle nut measuring 1.36 inches (34.6 mm) across flats, with a height of 0.91 inches (23 mm) and length of 1.57 inches (39.95 mm). The axle nut thread size is M26*1.5, secured with a stake locking mechanism to maintain tightness under driving conditions. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants.
The inboard joint is a female type with a spline connection style, featuring 31-2t splines, while the outboard joint is conventional with 30 splines. The overall compressed length of 26.44 inches (671.5 mm) ensures proper fitment and alignment within the driveline assembly.
About the AAR CV Axle Shaft Product Line
The AAR CV Axle Shaft line by TrakMotive focuses on delivering new, high-quality CV axle components designed to meet or exceed OEM standards. This product line emphasizes precise fitment and durability, making it suitable for replacement in various Acura and Honda models. The HO-8562 part is a new axle shaft, not remanufactured, ensuring consistent performance and longevity.
Applications and Common Issues Addressed
- Replacement for worn or damaged CV axle shafts in Acura MDX, Honda Passport, Pilot, and TLX
- Resolves axle vibration and noise caused by joint wear
- Fixes grease leaks due to torn or degraded boots
- Addresses axle shaft play or looseness affecting driveline stability
- Restores proper torque transfer and wheel alignment
Installation Notes and Tips
When installing the TrakMotive AAR CV Axle Shaft HO-8562, ensure the axle nut is torqued to manufacturer specifications and properly stake the locking nut to prevent loosening. Inspect the axle splines for damage before installation and verify the neoprene boot is seated correctly to avoid premature wear. This part is designed for direct replacement and should align with OEM mounting points for a straightforward installation.
Quality Assurance and Warranty
The TrakMotive AAR CV Axle Shaft HO-8562 is a new component manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes to ensure reliability in Acura and Honda driveline applications.
| Brand | TrakMotive |
| Part Number | HO-8562 |
| Position | AAR CV Axle Shaft, Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 671.5 |
This part fits 21 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Honda | Passport | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 2022 | Honda | Pilot | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 2021 | Honda | Passport | Automatic | 3.5L | V6 | Front Right | AAR CV Axle Shaft |
| 2021 | Honda | Pilot | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 2020 | Acura | MDX | 3.5L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |
| 2020 | Honda | Passport | Automatic | 3.5L | V6 | Front Right | AAR CV Axle Shaft |
| 2020 | Honda | Pilot | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft | |||
| 2019 | Acura | MDX | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft | |
| 2019 | Acura | TLX | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft | |
| 2019 | Honda | Passport | Automatic | 3.5L | V6 | Front Right | AAR CV Axle Shaft |
| 2019 | Honda | Pilot | Front Right | Updated Design; Outer; AAR CV Axle Shaft | |||
| 2018 | Acura | MDX | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft | |
| 2018 | Acura | TLX | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft | |
| 2018 | Honda | Pilot | Front Right | Updated Design; Outer; AAR CV Axle Shaft | |||
| 2017 | Acura | MDX | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft | |
| 2017 | Acura | TLX | Automatic | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Honda | Pilot | Front Right | Updated Design; Outer; AAR CV Axle Shaft | |||
| 2016 | Acura | MDX | Front Right | Updated Design; AAR CV Axle Shaft | |||
| 2016 | Acura | TLX | Automatic | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Honda | Pilot | Front Right | Updated Design; Outer; AAR CV Axle Shaft | |||
| 2015 | Acura | TLX | Automatic | 3.5L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
