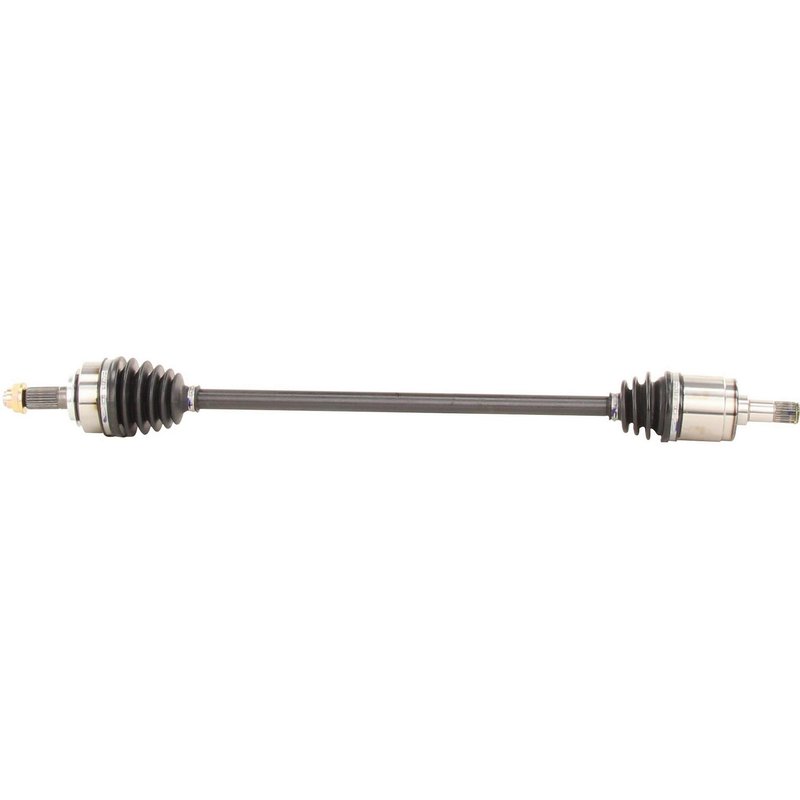

TrakMotive HO-8593 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8593 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35.35 |
| Overall Compressed Length (mm) | 898 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 2 vehicles |
New CV axle shaft. Fresh replacement part for restoring driveline function.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a more complete installation.
Cross-references TrakMotive HO-8593 for the same application. See all 1.
Honda Front Right CV Axle Shaft
TrakMotive HO-8593 is a new front right CV axle shaft for 2007-2008 Honda applications. This AAR CV Axle Shaft line is built for direct driveline replacement needs where a spline-style axle with the correct joint configuration is required.
Key Features
- Fits 2007-2008 Honda, front right
- Part number: HO-8593
- New CV axle shaft for driveline repair
- Inboard joint type: male with 25 inboard splines
- Outboard joint type: conventional with 26 outboard splines
- Inboard and outboard shaft connection style: spline
- Neoprene boot material
- Axle nut included; hex head, stake locking type, M22 x 1.5 thread
- Overall compressed length: 35.35 in (898 mm)
- No ABS tone ring included
Product Details
TrakMotive HO-8593 is an AAR CV Axle Shaft engineered for front right fitment on 2007-2008 Honda vehicles listed in the application data. The axle uses a male inboard joint, a conventional outboard joint, and spline connections at both ends for a direct replacement layout. The neoprene boot helps protect the joint assembly, while the included axle nut supports proper installation on the specified application. TrakMotive HO-8593 is a new part, not remanufactured, and is backed by manufacturing standards from an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references TrakMotive HO-8593 for the same application.
Common Repair Uses
- Restoring front right axle function after CV joint wear
- Replacing a damaged or noisy axle shaft on a 2007-2008 Honda
- Correcting vibration caused by worn spline or joint components
- Addressing torn boot or grease-loss related driveline issues
- Replacing a bent or failed front right CV axle assembly
Installation Notes
Verify the vehicle’s front right application, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the original hardware requirements. Because this axle does not include an ABS tone ring, check whether the vehicle uses a non-ABS setup or whether the application notes call for an axle without a tone ring.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new replacement part and states that it is produced by an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer information also notes a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Honda | Fit | Manual | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Honda | Fit | Manual | Front Right | Updated Design; AAR CV Axle Shaft |
