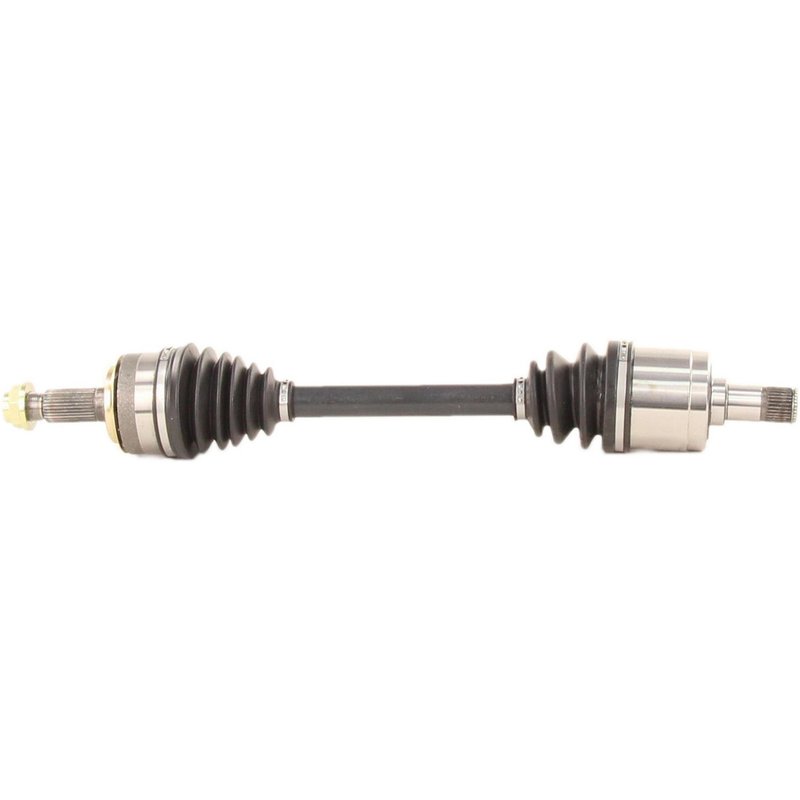

TrakMotive HO-8599 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8599 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.3 |
| Overall Compressed Length (mm) | 668 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 3 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves a separate parts run during installation.
Cross-references TrakMotive HO-8599, 60-4325 and 44306TX4A00 for the same application. See all 5.
Front Left CV Axle for Acura RDX
TrakMotive HO-8599 is a new AAR CV axle shaft for the front left position on 2013-2015 Acura RDX models. It is built for direct replacement service with the correct spline counts, compressed length, and axle nut specifications for the listed application.
Fits 2013-2015 Acura RDX, front left. This TrakMotive HO-8599 axle is a fitment-based replacement for the updated design used on these vehicles.
Key Features
- New CV axle shaft for front left installation
- Overall compressed length: 26.3 in. (668 mm)
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Inboard splines: 31; outboard splines: 30
- Neoprene boot material for drivetrain protection
- Axle nut included with hex head, stake locking type
- Axle nut thread size: M26 x 1.5
- No ABS tone ring included
Detailed Description
TrakMotive HO-8599 is an AAR CV axle shaft engineered for the front left side of the 2013-2015 Acura RDX. It is a new unit with the correct spline configuration and compressed length for the listed application, helping maintain proper driveline geometry and axle engagement. The axle includes a neoprene boot and an axle nut, and it is specified without an ABS tone ring.
For buyers searching for a 2013 Acura RDX front left CV axle shaft, a 2014 Acura RDX axle replacement, or a 2015 Acura RDX driveline component, HO-8599 provides a direct-fit option for the confirmed vehicle application. This part cross-references HO10608ER for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder under acceleration from axle wear
- Torn boot conditions that can lead to grease loss and contamination
- Excessive play in the front left driveline assembly
- Axle replacement needs after joint or shaft damage
Installation Notes
Verify the vehicle is a 2013-2015 Acura RDX with front left application before installation. Confirm axle nut thread size, spline count, and compressed length against the removed part to ensure proper match. Use the included axle nut and follow the vehicle service procedure for staking and torque specifications. Check ABS-related components on the vehicle, since this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new part and states that the company is ISO 9001:1007 and TS 16949:2009 certified. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Acura | RDX | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Acura | RDX | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Acura | RDX | Front Left | Updated Design; AAR CV Axle Shaft |
