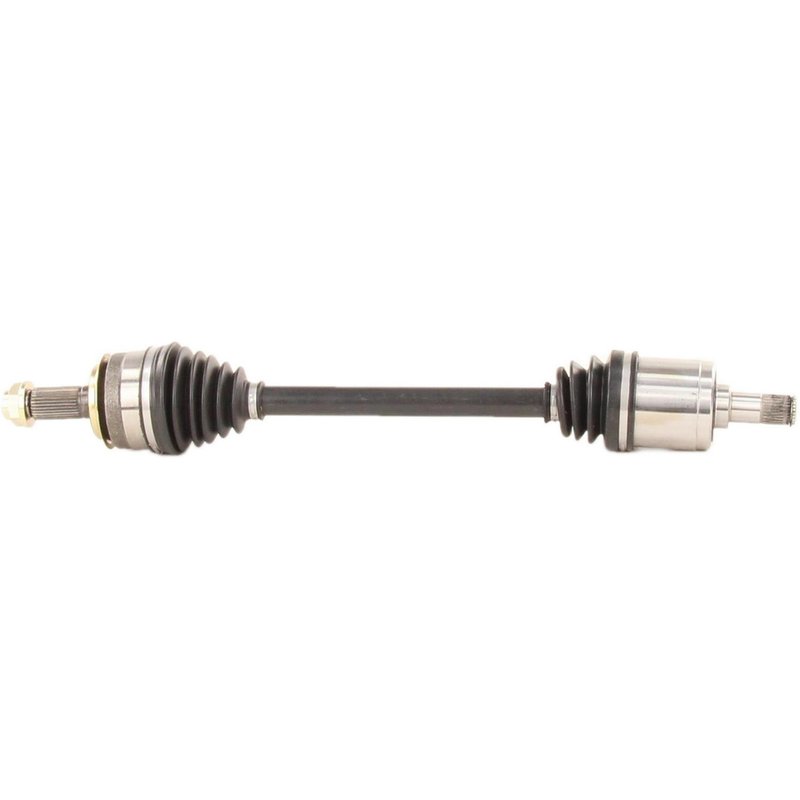

TrakMotive HO-8600 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8600 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.99 |
| Overall Compressed Length (mm) | 711 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 8 vehicles |
New unit. Built as a fresh CV axle shaft for dependable replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Spline connections. Provides secure engagement at both ends of the axle shaft.
Cross-references TrakMotive HO-8600, 44306TY4A00 and 44306TY4A00RM for the same application. See all 7.
TrakMotive HO-8600 CV Axle Shaft for Honda Crosstour
TrakMotive HO-8600 is a new CV axle shaft for the front left position on select 2012-2015 Honda Crosstour models. It is built with a neoprene boot, a spline-style shaft connection, and includes the axle nut for the specified application.
Key Features
- Fits 2012-2015 Honda Crosstour, front left
- New CV axle shaft for driveline and axle service
- Overall compressed length: 27.99 in. (711 mm)
- Inboard joint type: male with 27 inboard splines
- Outboard joint type: conventional with 30 outboard splines
- Neoprene boot material for CV joint protection
- Axle nut included; hex head, stake locking type, M26 x 1.5 thread
- No ABS tone ring included
- TrakMotive HO-8600 cross-references OE numbers 44306TY4A00 and 44306TY4A01
Product Details
TrakMotive HO-8600 is an AAR CV axle shaft from the TrakMotive AAR CV Axle Shaft line, built for front left service on the Honda Crosstour. The shaft uses a male inboard joint, a conventional outboard joint, and spline connections at both ends to match the listed application. With a compressed length of 27.99 inches, this axle is specified for 2012-2015 Honda Crosstour fitment and is supplied as a new replacement part. TrakMotive HO-8600 is also referenced by OE part numbers 44306TY4A00, 44306TY4A01, 44306TY4A20, 44306TY4A21, 44306TY4A22, and 44306TY4A00RM for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged CV boot
- Clunking or looseness from a failing front axle assembly
- Driveline noise related to a worn front left axle on a Honda Crosstour
Installation Notes
Verify front left fitment by year, model, and axle configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the mating hub, seals, and suspension components for wear before installing the new axle shaft. This part is listed for 2012-2015 Honda Crosstour, front left, and HO-8600 should be matched to the confirmed application before service.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part is new and built for the listed Honda Crosstour application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Honda | Crosstour | FWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Honda | Crosstour | AWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Honda | Crosstour | FWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Honda | Crosstour | AWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Honda | Crosstour | FWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Honda | Crosstour | AWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2012 | Honda | Crosstour | FWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2012 | Honda | Crosstour | AWD | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
