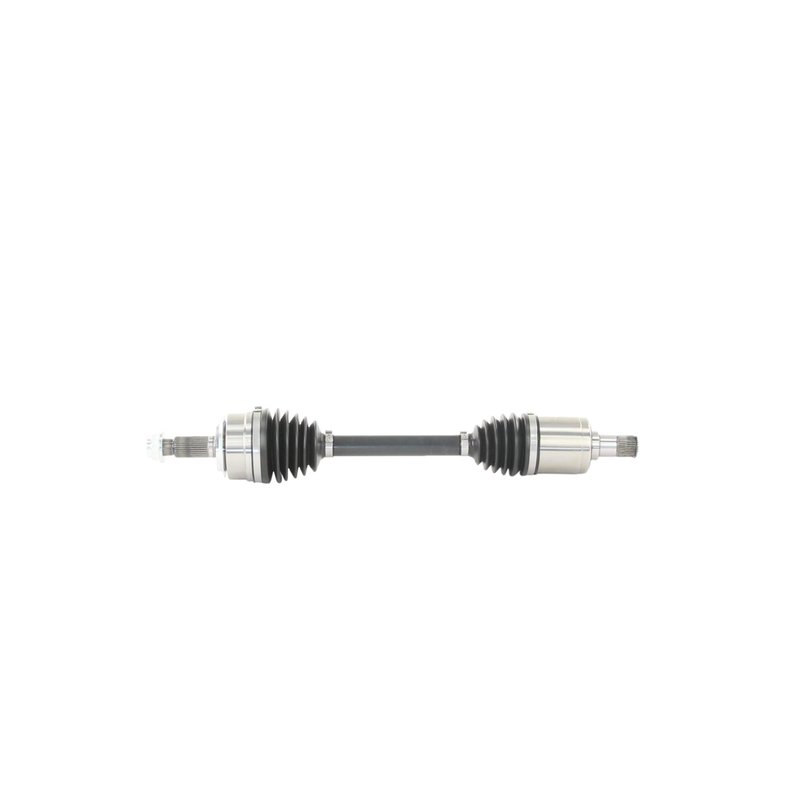

TrakMotive HO-86003 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86003 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.67 |
| Overall Compressed Length (mm) | 652 |
| Overall Extended Length (in) | 27.85 |
| Overall Extended Length (mm) | 708 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 3 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Includes axle nut. Stake-lock design with a 35 mm hex size for secure fastening.
Cross-references TrakMotive HO-86003 and 44306TVCA92 for the same application. See all 2.
Honda Accord Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86003 is a direct-fit driveline replacement for select 2018-2020 Honda Accord front left applications. Built as a premium CV axle shaft with OE AAR design details, it supports smooth power transfer from the transaxle to the wheel while matching the original axle layout.
Key Features
- Fits 2018-2020 Honda Accord, front left
- TrakMotive AAR CV Axle Shaft, part number HO-86003
- Premium-grade CV axle shaft for driveline service
- 31 inboard splines and 30 outboard splines
- Male inboard joint with spline shaft connection
- Conventional outboard joint design
- Thermoplastic boots on both joints
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
TrakMotive HO-86003 is engineered for the front left position on the Honda Accord from 2018 through 2020. This AAR CV axle shaft follows OE-style dimensions, including a 25.67-inch compressed length and 27.85-inch extended length, to support proper axle geometry and fitment. The axle uses a male inboard joint, a conventional outboard joint, and thermoplastic boot materials for both ends. TrakMotive HO-86003 also includes the axle nut specified for the application.
This part cross-references 44306TVCA92 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn axle boots that expose the joint to contamination
- Axle shaft wear that affects driveline smoothness
- Noise from a damaged front left CV axle assembly
Installation Notes
Verify front left fitment before installation on the 2018-2020 Honda Accord. Confirm spline count, axle nut thread size, and overall axle length against the original part. Because this axle is listed without an ABS tone ring, it is intended for non-ABS applications unless otherwise noted by the vehicle configuration. Use the included axle nut and follow the vehicle service procedure for torque and staking requirements.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft as a premium replacement part and states ISO 9001:2008 and TS 16949:2009 certification. The HO-86003 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Honda | Accord | Manual | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Honda | Accord | Manual | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Honda | Accord | Manual | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
