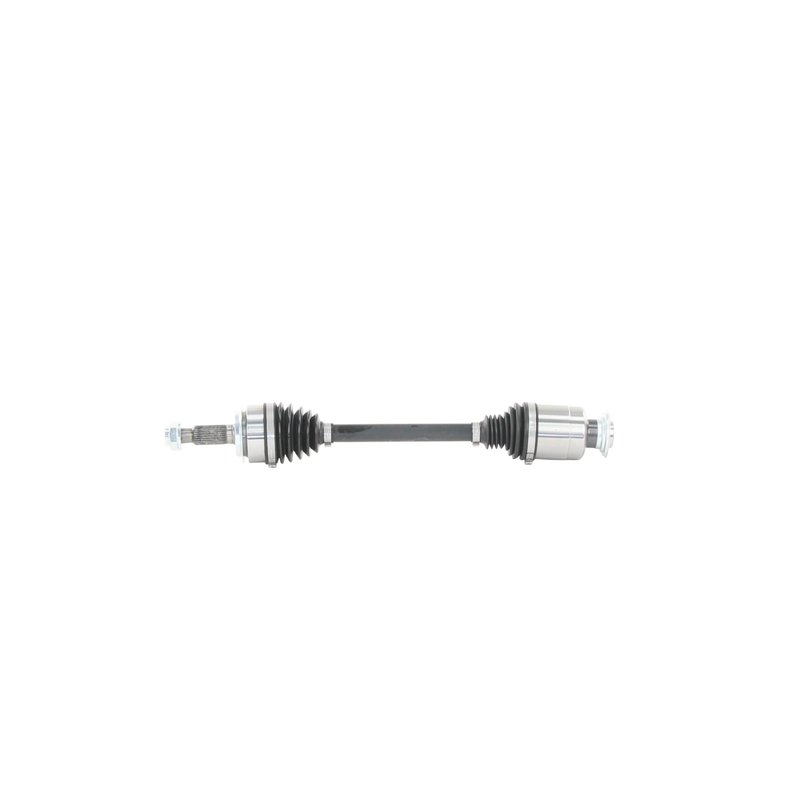

TrakMotive HO-86005 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86005 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.86 |
| Overall Compressed Length (mm) | 606 |
| Overall Extended Length (in) | 26.1 |
| Overall Extended Length (mm) | 663 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 5 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots and conventional joints.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 company.
Cross-references TrakMotive HO-86005 and 44305TGGA51 for the same application. See all 2.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-86005 is a premium CV axle shaft for the front right position on select 2017-2021 Honda Civic models. It is built with spline-style inboard and outboard connections, thermoplastic boots, and an included axle nut for a direct replacement on the listed application.
Key Features
- Fits 2017-2021 Honda Civic, front right
- TrakMotive AAR CV Axle Shaft line for application-specific driveline replacement
- Premium grade construction
- Inboard joint type: female with 27-2T splines
- Outboard joint type: conventional with 28 splines
- Thermoplastic inboard and outboard joint boots
- Includes axle nut with M24x1.5 thread, 36 mm hex/socket size, and stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
HO-86005 is a front right CV axle shaft for the Honda Civic, engineered for the listed 2017-2021 applications. The TrakMotive AAR CV Axle Shaft line focuses on replacement driveline components built to match the vehicle’s original fitment requirements, including compressed and extended length, spline count, and joint configuration. This part cross-references OE number 44305TGGA51 for the same application.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated CV boots that allow grease loss and contamination
- Excessive play in the front right driveline assembly
- Noise from a damaged or fatigued axle shaft on the Honda Civic
Installation Notes
Fits 2017-2021 Honda Civic, front right. Verify spline count, axle length, and hub and transmission engagement before installation. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if necessary. Confirm the vehicle is a non-ABS application unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive states this AAR CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Hatchback | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | Civic | Hatchback | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Honda | Civic | Hatchback | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Honda | Civic | Hatchback | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Honda | Civic | Hatchback | Automatic CVT | 1.5L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
