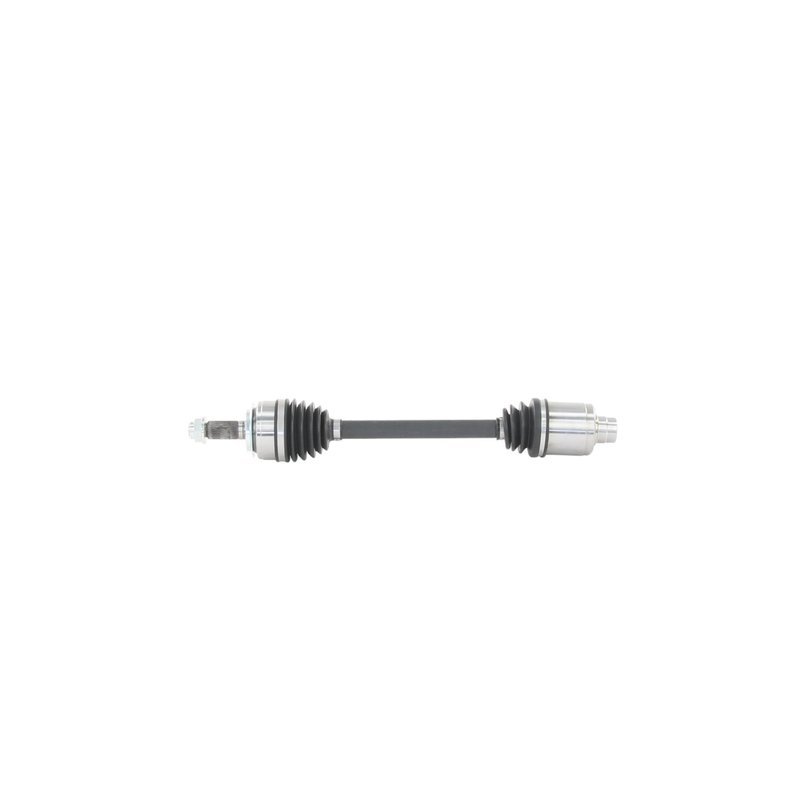

TrakMotive HO-86009 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86009 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.81 |
| Overall Compressed Length (mm) | 630 |
| Overall Extended Length (in) | 26.81 |
| Overall Extended Length (mm) | 682 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 4 vehicles |
OE-style replacement. Premium CV axle shaft for a direct-fit driveline repair.
Neoprene boot material. Helps resist wear in the inboard joint for dependable operation.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive HO-86009 for the same application. See all 1.
Honda Element Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86009 is a premium driveline replacement for the front right position on select Honda Element models. It is built for 2007-2010 Honda Element applications and supports smooth power transfer through the front axle assembly.
The AAR CV Axle Shaft line focuses on application-specific fitment and OE-style serviceability for driveline repairs. This HO-86009 axle is a direct replacement for the front right side on the Honda Element, with spline counts and compressed/extended lengths matched to the listed application.
Key Features
- Fits 2007-2010 Honda Element, front right
- TrakMotive AAR CV Axle Shaft line
- Part number HO-86009
- Premium grade construction
- Inboard joint type: female
- Inboard splines: 27; outboard splines: 28
- Inboard boot material: neoprene
- Outboard boot material: thermoplastic
- Overall compressed length: 24.81 in. (630 mm)
- Overall extended length: 26.81 in. (682 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive HO-86009 is a CV axle shaft for the front right side of the 2007-2010 Honda Element. It is engineered with a female inboard joint, conventional outboard joint, 27 inboard splines, and 28 outboard splines to match the listed vehicle application. The axle nut uses a 36 mm hex size and 23 mm nut height, and the unit does not include an axle nut.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. The HO-86009 is also identified by TrakMotive part number HO-86009 for ordering and catalog lookup.
Common Repair Uses
- Restores front right axle function after CV joint wear
- Addresses clicking or popping during turns
- Helps correct vibration during acceleration
- Replaces a damaged or leaking axle shaft assembly
- Supports repair after torn CV boots or grease loss
Installation Notes and Tips
Verify front right fitment before installation on the Honda Element. Inspect the intermediate shaft for damage when replacing a CV axle, and replace it if needed. Confirm spline count, axle length, and axle nut specifications before assembly. Because the axle nut is not included, reuse or source the correct hardware separately as required by the vehicle service procedure.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft under a Limited Lifetime Warranty and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Honda | Element | SC | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2009 | Honda | Element | SC | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2008 | Honda | Element | SC | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2007 | Honda | Element | SC | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
