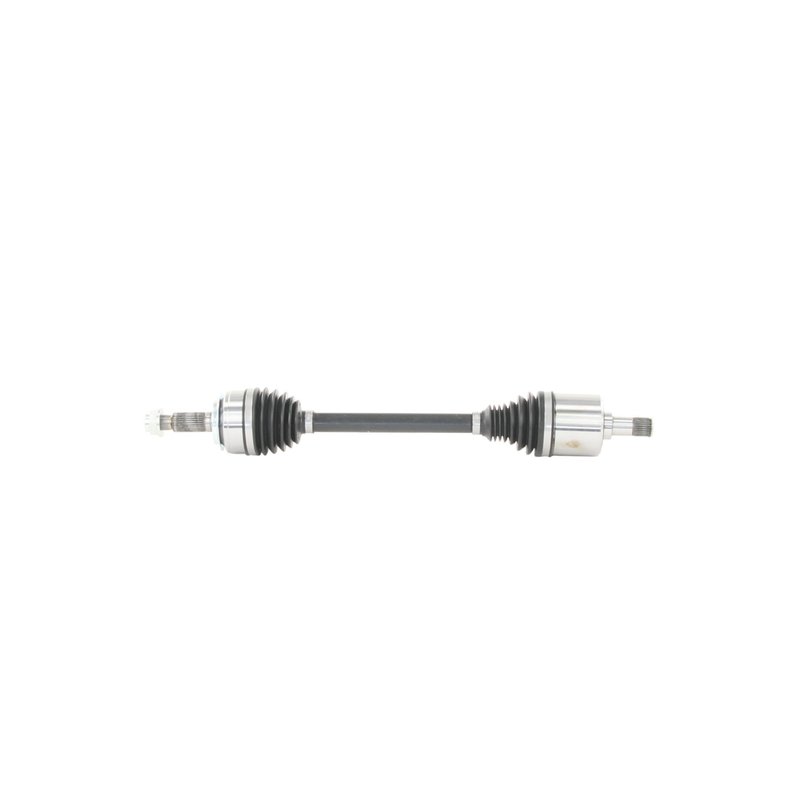

TrakMotive HO-86010 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86010 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 672 |
| Overall Extended Length (in) | 28.56 |
| Overall Extended Length (mm) | 726 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 1 vehicle |
OE-style replacement. AAR CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots and a conventional outboard joint.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Cross-references TrakMotive HO-86010 for the same application. See all 1.
Honda Civic Front Left CV Axle Shaft
TrakMotive HO-86010 is a premium CV axle shaft for the front left position on the 2021 Honda Civic. Built for OE AAR design applications, it supports smooth driveline operation with the correct spline counts and compressed/extended length for this specific fitment.
Key Features
- Fits 2021 Honda Civic, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 27; outboard splines: 28
- Thermoplastic boot material on both joints
- Axle nut hex size: 36 mm; axle nut height: 23 mm
- Overall compressed length: 26.44 in. (672 mm); extended length: 28.56 in. (726 mm)
Detailed Description
TrakMotive HO-86010 is a front left CV axle shaft engineered for the 2021 Honda Civic with OE AAR design requirements. It is built with a male inboard joint, a conventional outboard joint, 27 inboard splines, and 28 outboard splines to match the listed driveline configuration. The thermoplastic boot construction helps protect the joints while maintaining the correct fit and articulation for the application. TrakMotive HO-86010 is a direct-fit driveline replacement for the 2021 Honda Civic, front left.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for passenger vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline play caused by spline or joint wear
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify axle nut size, spline count, and overall length before installation. Replace the axle nut only if required by the vehicle service procedure, since it is not included. Confirm the vehicle is a 2021 Honda Civic, front left, and compare the OE AAR design details to the removed part before assembly.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Hatchback | Manual | 1.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
