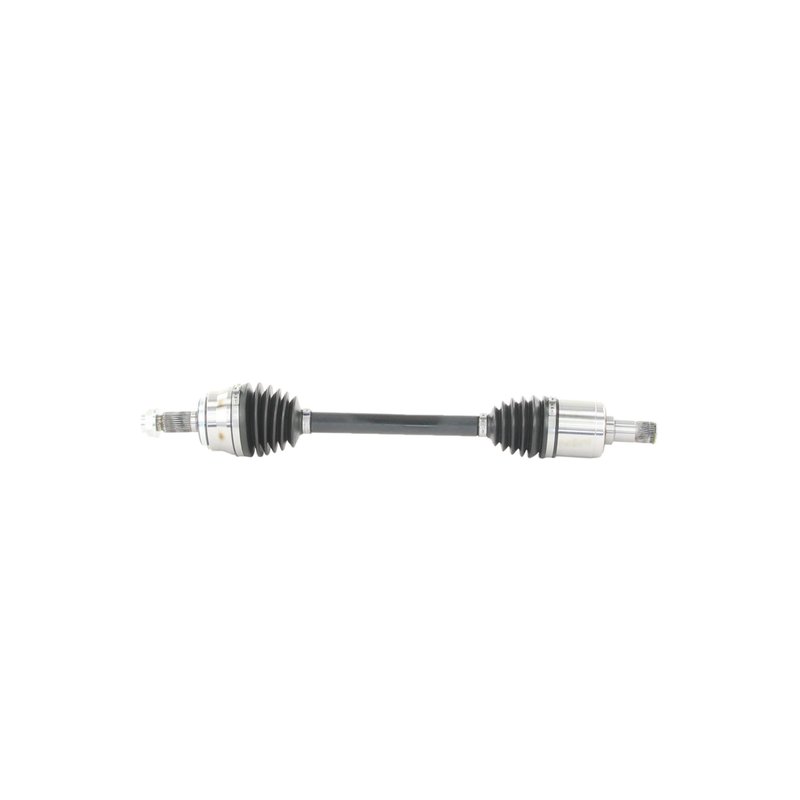

TrakMotive HO-86012 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86012 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27.5 |
| Overall Compressed Length (mm) | 698 |
| Overall Extended Length (in) | 29.5 |
| Overall Extended Length (mm) | 749 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Built with thermoplastic boots and a conventional outboard joint.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86012 for the same application. See all 1.
TrakMotive HO-86012 Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86012 is a direct driveline replacement for the front left side of select Acura MDX applications. Built for OE AAR design fitment, it supports smooth power transfer from the transaxle to the wheel while matching the original axle geometry for 2014-2015 Acura MDX front left service.
Key Features
- Fits 2014-2015 Acura MDX, front left
- TrakMotive AAR CV Axle Shaft, part number HO-86012
- Premium-grade CV axle shaft for driveline repair
- 31 inboard splines and 30 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Male inboard joint with conventional outboard joint design
- ABS tone ring not included; ABS ring tooth count is 0
- Axle nut socket size: 35 mm
Product Details
This TrakMotive HO-86012 axle shaft is engineered for the front left position on the 2014-2015 Acura MDX and follows the OE AAR design noted for this application. The shaft measures 27.5 inches compressed and 29.5 inches extended, with a 23 mm axle nut height and 35 mm hex/socket size. TrakMotive positions the AAR CV Axle Shaft line as a premium driveline solution, and the HO-86012 is built to restore proper axle engagement, joint articulation, and torque delivery in the specified Acura MDX fitment.
This part cross-references TrakMotive HO-86012 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn front left CV axle
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from damaged CV boots
- Clunking or looseness in the driveline during load changes
- Loss of smooth power transfer to the front wheel
Installation Notes
Verify front left fitment before installation on the 2014-2015 Acura MDX. Confirm spline count, axle nut size, and overall length against the original axle before assembly. Replace only with the correct OE-style configuration for the vehicle, and inspect surrounding components such as seals, hubs, and suspension hardware for wear that could affect axle operation.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Acura | MDX | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Acura | MDX | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
