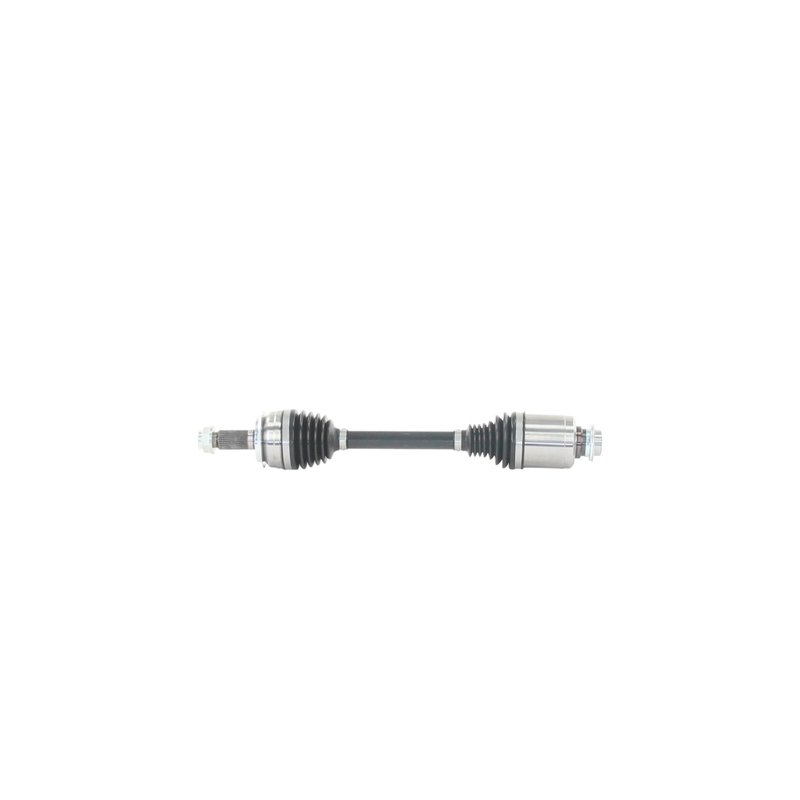

TrakMotive HO-86013 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86013 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.875 |
| Overall Compressed Length (mm) | 581 |
| Overall Extended Length (in) | 25.19 |
| Overall Extended Length (mm) | 640 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 3 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86013 for the same application. See all 1.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-86013 is a premium CV axle shaft for the front right position on select 2017-2019 Honda CR-V models. It is built for direct driveline replacement where a worn or damaged axle is causing vibration, clicking, or loss of smooth power transfer.
Key Features
- Fits 2017-2019 Honda CR-V, front right
- Premium-grade CV axle shaft for driveline service
- 27 inboard splines and 30 outboard splines
- Female inboard joint with conventional outboard joint design
- Thermoplastic boots on both joints
- Overall compressed length: 22.875 in. (581 mm)
- Overall extended length: 25.19 in. (640 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut thread size: M26x1.5, hex size: 35 mm
Product Details
TrakMotive HO-86013 is part of the AAR CV Axle Shaft line, a driveline-focused product line for replacement applications that require accurate fit and dependable joint geometry. This axle is engineered for the front right side of the Honda CR-V and uses a female inboard joint with a conventional outboard joint configuration. The thermoplastic boot material helps protect the CV joints from road debris and moisture while maintaining flexibility in normal suspension travel. TrakMotive HO-86013 is a direct-fit replacement for 2017-2019 Honda CR-V front right service work and is backed by the manufacturer’s limited lifetime warranty.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns
- Vibration during acceleration
- Grease leakage from a damaged CV boot
- Worn splines or joint wear at the axle assembly
- Driveline noise from a failing front right axle on a Honda CR-V
Installation Notes
Fits 2017-2019 Honda CR-V, front right. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if necessary. Verify axle nut thread size, hex size, and overall length before installation to confirm proper application. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states this axle is produced by an ISO 9001:2008 and TS 16949:2009 certified company. HO-86013 includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Honda | CR-V | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Honda | CR-V | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Honda | CR-V | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
