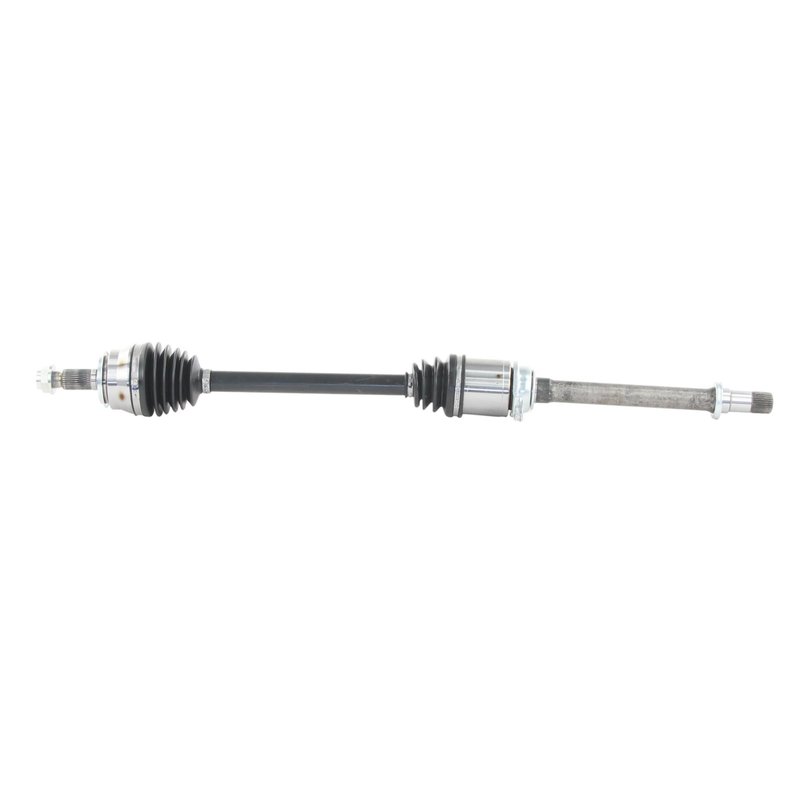

TrakMotive HO-86020 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86020 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.94 |
| Overall Compressed Length (mm) | 1014 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
Premium grade. Built as a CV axle shaft with a neoprene inboard boot and thermoplastic outboard boot.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86020 for the same application. See all 1.
Front Right CV Axle for Acura MDX
TrakMotive HO-86020 is a premium CV axle shaft for the front right position on 2014-2015 Acura MDX models. It is built for OE AAR design applications and supports smooth power transfer in driveline service.
Key Features
- Fits 2014-2015 Acura MDX, front right
- OE AAR design application
- Premium-grade CV axle shaft
- Long-male inboard joint type
- Conventional outboard joint type
- 31 inboard splines and 30 outboard splines
- Neoprene inboard boot and thermoplastic outboard boot
- Axle nut thread size: M26x1.5
- Axle nut hex size: 35 mm
- Overall compressed length: 1014 mm
Product Details
TrakMotive HO-86020 is a front right CV axle shaft engineered for the 2014-2015 Acura MDX with OE AAR design requirements. The axle uses a long-male inboard joint, a conventional outboard joint, and spline counts matched to the application for proper driveline engagement. TrakMotive positions the AAR CV Axle Shaft line as a premium replacement option, and the brand notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices for consistent production control. HO-86020 is also listed with no ABS tone ring included and no axle nut included.
This part cross-references TrakMotive HO-86020 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Axle shaft wear that affects driveline smoothness
- Loss of consistent power delivery to the front right wheel
Installation Notes and Tips
Verify the vehicle is a 2014-2015 Acura MDX, front right, before ordering. Confirm axle nut thread size M26x1.5, hex size 35 mm, and overall length 1014 mm against the original part. Because the axle nut is not included, reuse or source the correct hardware separately as needed. Inspect the hub, seals, and surrounding suspension components during installation to help ensure proper fit and operation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Acura | MDX | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Acura | MDX | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
