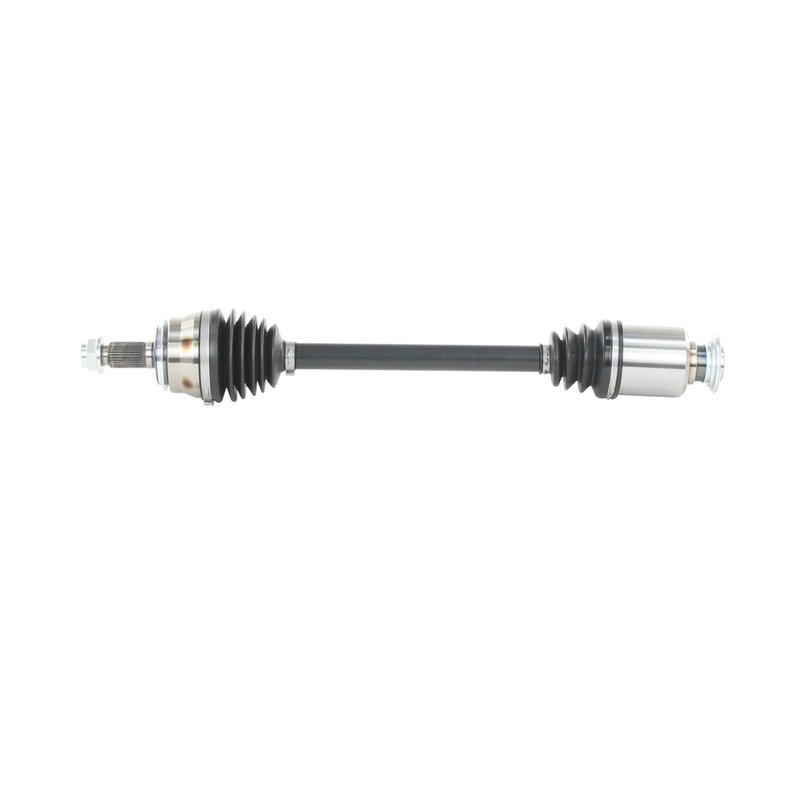

TrakMotive HO-86025 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86025 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .9 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.88 |
| Overall Compressed Length (mm) | 682 |
| Overall Extended Length (in) | 29.25 |
| Overall Extended Length (mm) | 743 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 5 vehicles |
Premium grade. Built as a CV axle shaft with conventional outboard and female inboard joints.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86025 and HO10629ER for the same application. See all 2.
Honda Odyssey Front Right CV Axle Shaft
TrakMotive HO-86025 is a premium CV axle shaft for the front right position on select 2018-2022 Honda Odyssey models. It is built for direct driveline replacement where a conventional outboard joint and female inboard joint are required.
Key Features
- Fits 2018-2022 Honda Odyssey, front right
- Premium-grade CV axle shaft for driveline repair
- Conventional outboard joint type
- Female inboard joint type
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M26x1.5
- Overall compressed length: 26.88 in. (682 mm)
- Overall extended length: 29.25 in. (743 mm)
Product Details
TrakMotive AAR CV Axle Shaft HO-86025 is engineered for the front right side of the Honda Odyssey and matches the listed spline and dimensional requirements for the application. The AAR CV Axle Shaft line focuses on replacement driveline components built to support accurate fitment and consistent service performance. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores driveline function after a worn or damaged axle shaft
- Addresses clicking or popping noises during turns
- Helps correct vibration caused by CV joint wear
- Replaces a shaft with damaged splines or seal surfaces
- Supports repair of axle-related grease leakage or boot failure
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as noted for this application. Verify axle nut thread size, hex size, and overall length against the original part before assembly. Confirm front right placement and compare spline counts and joint style to the removed axle on the Honda Odyssey.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Honda | Odyssey | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Honda | Odyssey | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | Odyssey | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Honda | Odyssey | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Honda | Odyssey | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
