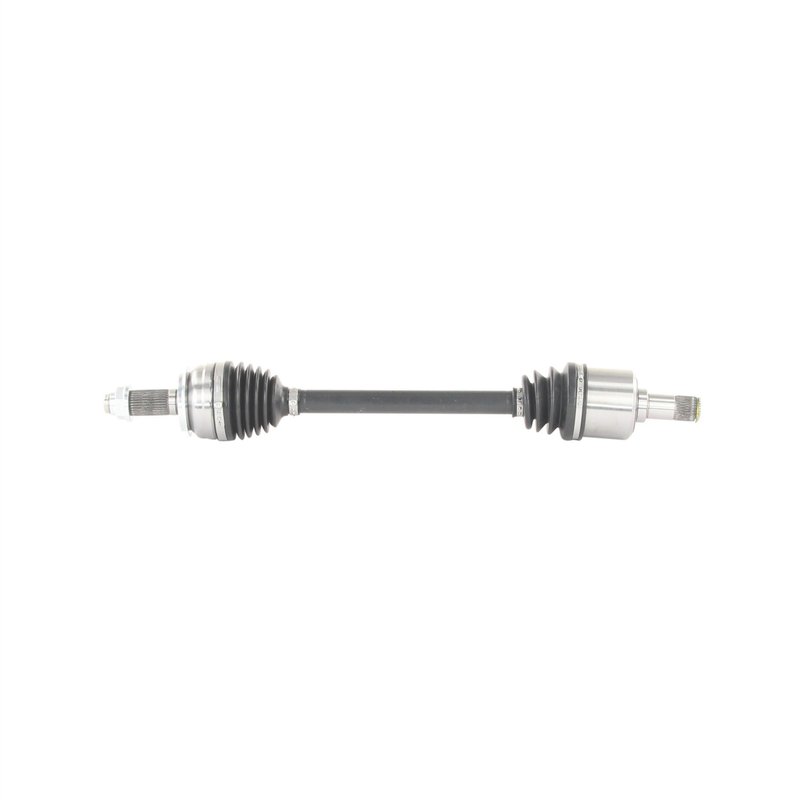

TrakMotive HO-86028 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86028 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26*1.5 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.63 |
| Overall Compressed Length (mm) | 675.5 |
| Overall Compressed Length (mm) | 676 |
| Overall Extended Length (in) | 28.19 |
| Overall Extended Length (mm) | 716 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
Premium-grade construction. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86028 for the same application. See all 1.
Acura RL Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86028 is a premium replacement for the front left position on select Acura RL models. It is built for 2009-2010 Acura RL applications with OE AAR design requirements, making it a direct-fit driveline service part for the front axle.
Key Features
- Fits 2009-2010 Acura RL, front left
- TrakMotive AAR CV Axle Shaft line
- Part number HO-86028
- Premium grade construction
- Inboard joint type: male
- Outboard joint type: conventional
- 29 inboard splines and 30 outboard splines
- Overall compressed length: 26.63 in. (675.5-676 mm)
- Overall extended length: 28.19 in. (716 mm)
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive HO-86028 is an OE-style CV axle shaft for the front left side of the Acura RL. The AAR CV Axle Shaft line is positioned for applications that require accurate fitment and driveline geometry, and this unit follows the listed spline counts, lengths, and axle nut specifications for the confirmed vehicle coverage. The axle nut thread size is M26x1.5, with a 35 mm socket size and 23 mm nut height.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restoring front-wheel driveline operation after CV joint wear
- Replacing a noisy or clicking axle shaft on the front left side
- Addressing vibration during acceleration from a worn axle assembly
- Correcting torn boot-related axle damage
- Replacing a shaft with spline or length mismatch concerns
Installation Notes
Verify the vehicle is a 2009-2010 Acura RL with front left fitment before installation. Confirm axle nut thread size, socket size, spline counts, and overall length against the removed part. ABS axles fit non-ABS applications unless otherwise noted, and this listing shows no ABS tone ring included.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Acura | RL | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2009 | Acura | RL | Front Left | OE AAR design; AAR CV Axle Shaft |
