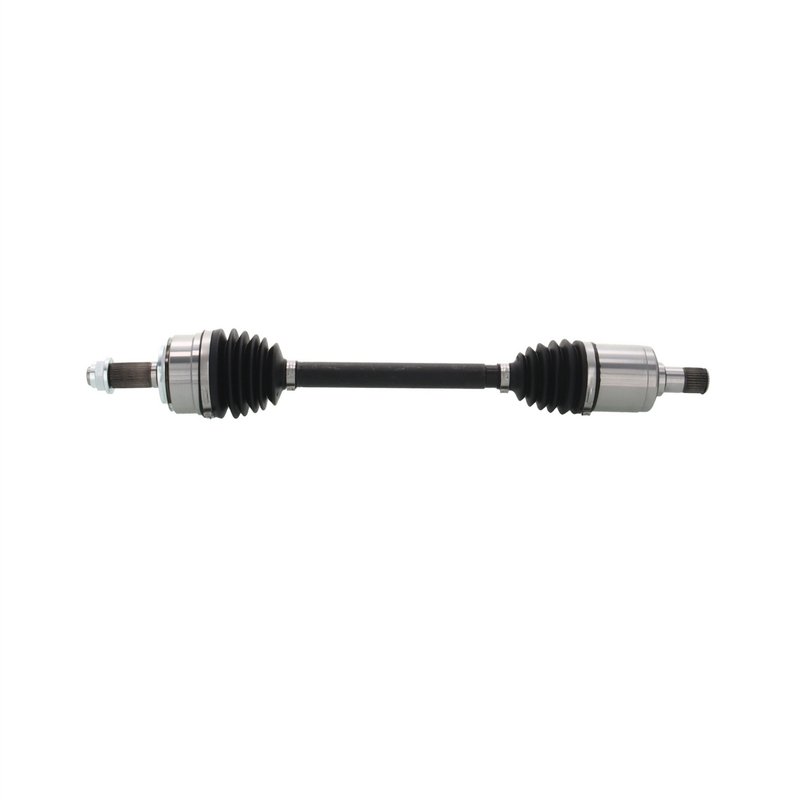

TrakMotive HO-86029 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86029 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26*1.5 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27.81 |
| Overall Compressed Length (mm) | 707 |
| Overall Extended Length (in) | 30 |
| Overall Extended Length (mm) | 762.5 |
| Overall Extended Length (mm) | 763 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 4 vehicles |
AAR CV axle shaft. Premium driveline replacement for dependable power transfer.
ISO certified manufacturing. Built under ISO 9001:2008 and TS 16949:2009 standards.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Cross-references TrakMotive HO-86029 for the same application. See all 1.
TrakMotive HO-86029 Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft HO-86029 is a premium driveline replacement for the front left position on select Acura MDX models. It is built for 2017-2020 Acura MDX applications with OE AAR design requirements, making it a direct-match option for restoring driveline function and axle performance.
Key Features
- Fits 2017-2020 Acura MDX, front left
- OE AAR design for the specified application
- Premium-grade CV axle shaft construction
- Male inboard joint type with conventional outboard joint
- 31 inboard splines and 30 outboard splines
- Overall compressed length: 707 mm (27.81 in)
- Overall extended length: 762.5-763 mm (30 in)
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M26x1.5; socket size: 35 mm
Product Details
TrakMotive HO-86029 is part of the AAR CV Axle Shaft line, a product line identified for OE-style axle applications. For the Acura MDX front left position, this axle shaft is specified with a male inboard joint, conventional outboard joint, and the spline counts needed for the listed vehicle fitment. The shaft dimensions and axle nut specifications support accurate replacement selection for 2017, 2018, 2019, and 2020 Acura MDX driveline service. This part number, HO-86029, is also the interchange reference for the same application.
Common Repair Applications
- Front axle vibration or clicking during turns
- Worn CV joint noise from the front left side
- Axle shaft damage from boot failure or road impact
- Driveline shudder under acceleration
- Replacement after axle spline or joint wear
Installation Notes
Verify the front left position, spline counts, and axle nut thread size before installation. Confirm that the vehicle uses the listed OE AAR design and compare shaft length to the original part. The axle nut is not included, so reuse or source the correct M26x1.5 nut as required by the vehicle service procedure. HO-86029 should be installed with the correct torque specifications and inspected after road testing.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production standards for this CV axle shaft.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Acura | MDX | 3.0L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
