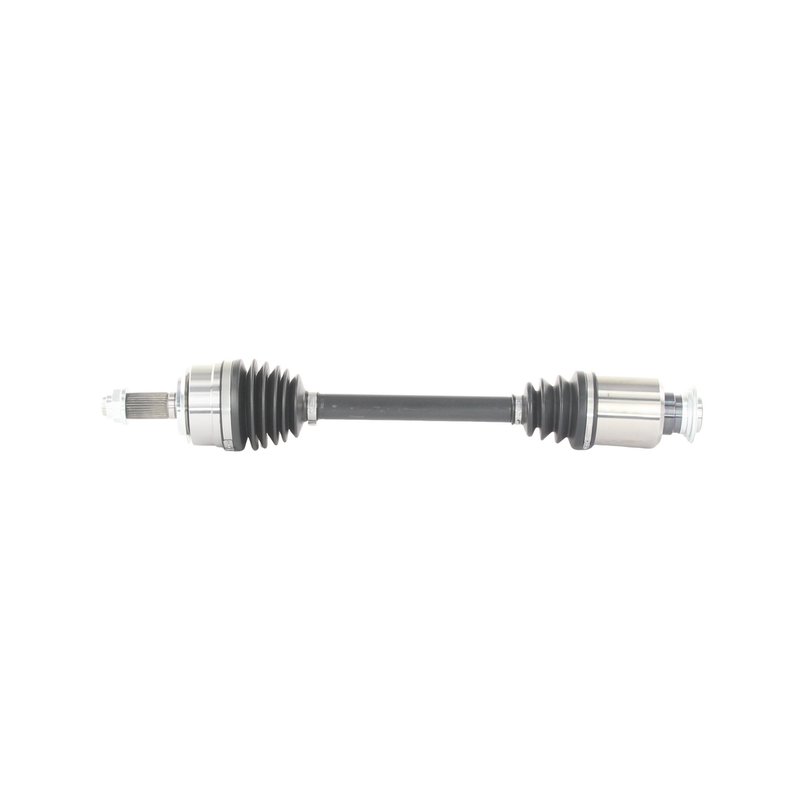

TrakMotive HO-86030 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86030 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26*1.5 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.81 |
| Overall Compressed Length (mm) | 655 |
| Overall Extended Length (in) | 28.19 |
| Overall Extended Length (mm) | 715.5 |
| Overall Extended Length (mm) | 716 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 4 vehicles |
Premium grade. A quality CV axle shaft built for dependable driveline service.
Conventional outboard joint. A straightforward design for smooth power transfer.
ABS tone ring not included. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive HO-86030 for the same application. See all 1.
Front Right CV Axle Shaft for Acura MDX
The TrakMotive AAR CV Axle Shaft HO-86030 is a premium replacement axle for the front right position on select Acura MDX models. It is built for 2017-2020 Acura MDX applications and is specified with a female inboard joint and conventional outboard joint for direct driveline service.
Key Features
- Fits 2017-2020 Acura MDX, front right
- TrakMotive AAR CV Axle Shaft, part number HO-86030
- Premium-grade replacement for driveline and axle service
- 31-2T inboard splines and 30 outboard splines
- Overall compressed length: 655 mm (25.81 in)
- Overall extended length: 716 mm (28.19 in)
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M26x1.5; socket size: 35 mm
Product Details
TrakMotive HO-86030 is a front right CV axle shaft for the Acura MDX, engineered for the 2017, 2018, 2019, and 2020 model years. The AAR CV Axle Shaft line focuses on replacement driveline components with application-specific dimensions, spline counts, and joint design to match the vehicle’s original axle layout. This part cross-references TrakMotive HO-86030 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged CV boot or joint
- Noise from a failing front right axle assembly
- Restoring proper driveline operation on Acura MDX front right applications
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as noted by the manufacturer. Verify spline count, axle nut thread size, and overall length against the original part before assembly. This axle uses a 35 mm axle nut socket size and does not include an axle nut.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for replacement driveline parts.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Acura | MDX | 3.0L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Acura | MDX | 3.0L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Acura | MDX | 3.0L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Acura | MDX | 3.0L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
