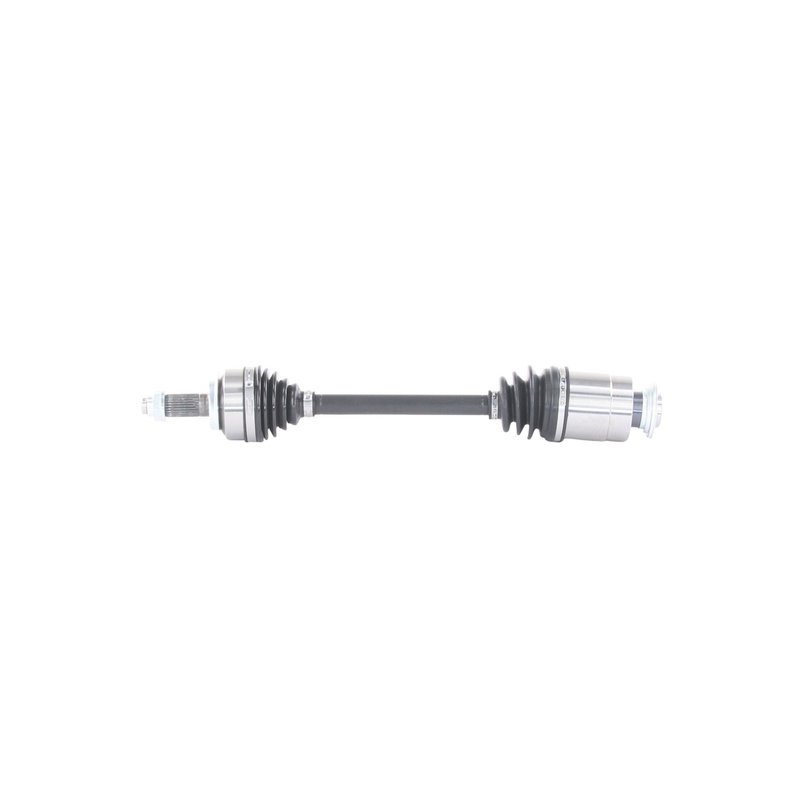

TrakMotive HO-86031 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86031 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.06 |
| Overall Compressed Length (mm) | 560.5 |
| Overall Compressed Length (mm) | 561 |
| Overall Extended Length (in) | 24.13 |
| Overall Extended Length (mm) | 616 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 4 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
ABS-ready design. Configured without an ABS tone ring for non-ABS applications.
Certified manufacturing. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86031 for the same application. See all 1.
Honda CR-Z Front Right CV Axle Shaft
Restore driveline performance on select 2013-2016 Honda CR-Z models with the TrakMotive AAR CV Axle Shaft, part number HO-86031. This premium replacement is built for the front right position and matches the application details needed for a direct-fit repair.
Key Features
- Fits 2013-2016 Honda CR-Z, front right
- TrakMotive AAR CV Axle Shaft, part number HO-86031
- Premium grade replacement for driveline service
- Female inboard joint with conventional outboard joint design
- 27-2T inboard splines and 26 outboard splines
- Overall compressed length: 22.06 in. (560.5 mm); overall extended length: 24.13 in. (616 mm)
- Axle nut thread size: M22x1.5; 32 mm socket size
- No ABS tone ring included
Product Details
The TrakMotive HO-86031 is a front right CV axle shaft for the Honda CR-Z, engineered to match the vehicle’s spline count, joint style, and length requirements. It is intended for non-ABS applications unless otherwise noted, and the manufacturer identifies the axle as part of its AAR CV Axle Shaft line. TrakMotive states the product is backed by a limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged CV boot or joint
- Noise or play from a fatigued front axle assembly
- Driveline service on a 2013-2016 Honda CR-Z front right position
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as recommended by the manufacturer. Verify axle nut thread size, spline count, and overall length against the original part before assembly. Confirm the vehicle’s ABS and non-ABS configuration, since this axle is listed without an ABS tone ring.
Quality Assurance
TrakMotive identifies this AAR CV Axle Shaft as a premium replacement built by an ISO 9001:2008 and TS 16949:2009 certified company. The HO-86031 is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Honda | CR-Z | Manual | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2015 | Honda | CR-Z | Manual | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2014 | Honda | CR-Z | Manual | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2013 | Honda | CR-Z | Manual | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
