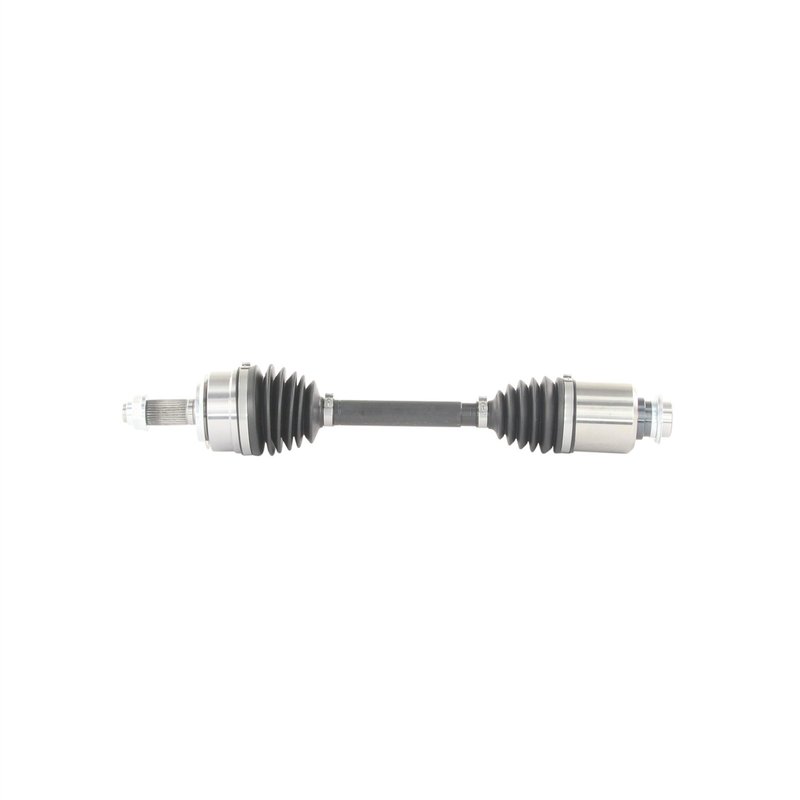

TrakMotive HO-86033 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86033 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26*1.5 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.75 |
| Overall Compressed Length (mm) | 603.5 |
| Overall Compressed Length (mm) | 604 |
| Overall Extended Length (in) | 25.81 |
| Overall Extended Length (mm) | 656 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 5 vehicles |
OE direct replacement. AAR CV axle shaft for a precise, bolt-on fit.
Premium grade. Built with a conventional outboard joint and female inboard joint.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86033 for the same application. See all 1.
Honda Accord Front Right CV Axle Shaft
Restore driveline performance with the TrakMotive AAR CV Axle Shaft HO-86033 for the front right position on select Honda Accord models. This premium replacement is built for 2018-2022 Honda Accord applications and is engineered to match the vehicle’s original axle dimensions and spline counts.
Key Features
- Fits 2018-2022 Honda Accord, front right
- TrakMotive AAR CV Axle Shaft, part number HO-86033
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: female
- Outboard joint type: conventional
- Overall compressed length: 23.75 in. (603.5-604 mm)
- Overall extended length: 25.81 in. (656 mm)
- Axle nut thread size: M26x1.5
- Axle nut socket size: 35 mm
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
The TrakMotive HO-86033 CV axle shaft is a direct-fit driveline replacement for the front right side of the Honda Accord. It features 31-2T inboard splines and 30 outboard splines, along with a female inboard joint and conventional outboard joint configuration. The axle is built to the listed compressed and extended lengths for proper fitment in the specified Accord applications. TrakMotive’s AAR CV Axle Shaft line focuses on application-specific replacement parts for driveline repair, and this part cross-references TrakMotive HO-86033 for the same application.
Common Repair Uses
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive play or noise from a failing front axle assembly
- Restoring driveline operation on a 2018-2022 Honda Accord front right position
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as noted by the manufacturer. Verify axle nut thread size, socket size, spline counts, and overall length against the original part before assembly. The axle nut is not included, so reuse or source the correct M26x1.5 nut as required by the vehicle service procedure.
Quality Assurance
TrakMotive states that this part is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Honda | Accord | — | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Honda | Accord | — | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Honda | Accord | Automatic | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Honda | Accord | Automatic | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Honda | Accord | Automatic | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
