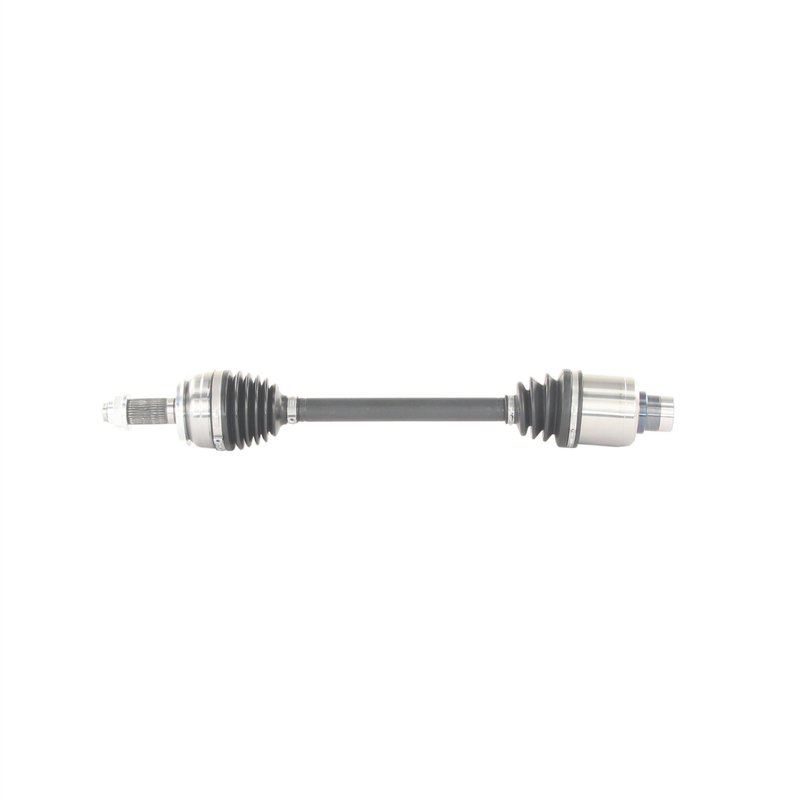

TrakMotive HO-86034 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86034 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26*1.5 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.75 |
| Overall Compressed Length (mm) | 629 |
| Overall Extended Length (in) | 26.69 |
| Overall Extended Length (mm) | 677.5 |
| Overall Extended Length (mm) | 678 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 2 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Conventional joint design. Delivers smooth power transfer through a proven axle construction.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive HO-86034 for the same application. See all 1.
Front Right CV Axle for Acura RL
TrakMotive HO-86034 is a premium CV axle shaft for the front right position on 2009-2010 Acura RL models. It is built for non-ABS applications unless otherwise noted and is backed by TrakMotive’s limited lifetime warranty.
Key Features
- Fits 2009-2010 Acura RL, front right
- Premium-grade AAR CV axle shaft
- Inboard joint type: female
- Outboard joint type: conventional
- 29-2T inboard splines and 30 outboard splines
- Overall compressed length: 24.75 in. (629 mm)
- Overall extended length: 26.69 in. (677.5-678 mm)
- Axle nut thread size: M26x1.5
- Axle nut socket size: 35 mm
- ABS tone ring not included
Product Details
The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts with OE-style fit and construction details. HO-86034 is engineered for the front right side of the 2009-2010 Acura RL and uses the listed spline counts, joint styles, and shaft lengths to match the original axle layout. This part number, HO-86034, is a direct reference for the Acura RL front right application and is also identified by TrakMotive HO-86034.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot or joint
- Excessive drivetrain play from a worn front axle assembly
- Restoration of proper front right axle function on Acura RL models
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if needed, as recommended for CV axle replacement on this application. Verify axle nut thread size, socket size, spline count, and overall length against the original part before installation. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included.
Quality Assurance
TrakMotive states that this AAR CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Acura | RL | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2009 | Acura | RL | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
