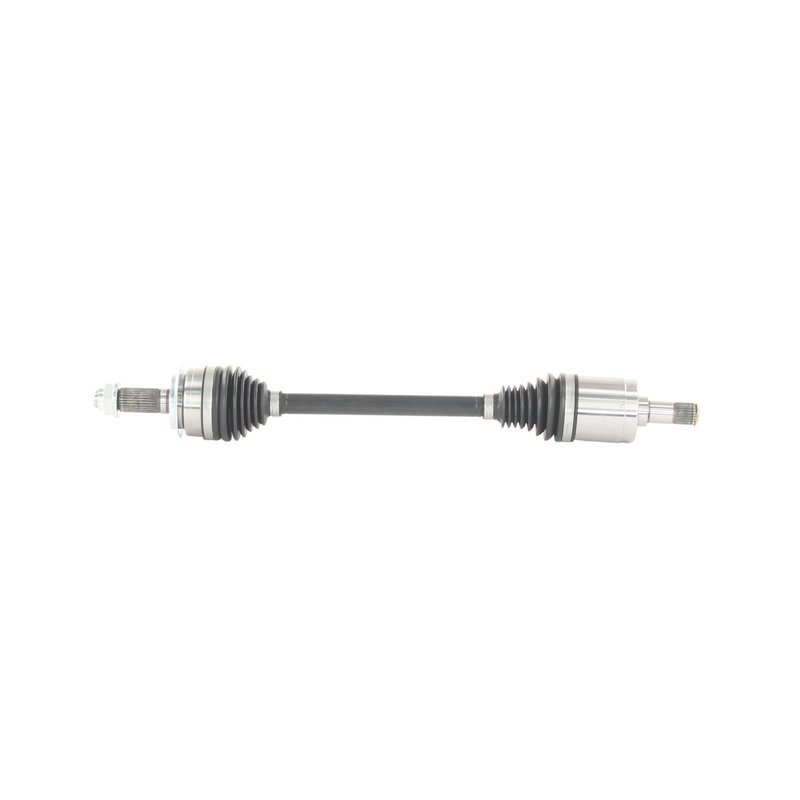

TrakMotive HO-86035 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86035 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 653 |
| Overall Extended Length (in) | 27.88 |
| Overall Extended Length (mm) | 708 |
| Product line | AAR CV Axle Shaft |
| Fits | Honda · 3 vehicles |
Premium grade. A CV axle shaft built for dependable driveline performance.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive HO-86035 for the same application. See all 1.
Honda Civic Front Left CV Axle Shaft
TrakMotive HO-86035 is a premium CV axle shaft for the front left position on select 2019-2021 Honda Civic models. It follows an OE AAR design and is built for direct driveline replacement on the listed application.
Key Features
- Fits 2019-2021 Honda Civic, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft
- Male inboard joint with conventional outboard joint
- 25 inboard splines and 28 outboard splines
- Overall compressed length: 653 mm (25.69 in)
- Overall extended length: 708 mm (27.88 in)
- Axle nut thread size: M24x1.5
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive HO-86035 is a front left CV axle shaft for the 2019, 2020, and 2021 Honda Civic. The AAR CV Axle Shaft line is positioned as a premium driveline replacement option, and this unit is configured with a male inboard joint, a conventional outboard joint, 25 inboard splines, and 28 outboard splines. It measures 653 mm compressed and 708 mm extended, with an M24x1.5 axle nut thread size and a 36 mm socket size.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle boot or joint
- Driveline noise from spline or joint deterioration
- Front axle replacement needs on the listed Honda Civic models
Installation Notes and Tips
Confirm front left fitment against the vehicle’s original axle dimensions, spline counts, and axle nut thread size before installation. This axle does not include an axle nut, so reuse or source the correct M24x1.5 hardware separately. ABS axles fit non-ABS applications unless otherwise noted, and this listing shows no ABS tone ring included.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft line is produced by an ISO 9001:2008 and TS 16949:2009 certified company. The HO-86035 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Sport | Automatic CVT | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Honda | Civic | Sport | Automatic CVT | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Honda | Civic | Sport | Automatic CVT | 2.0L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
