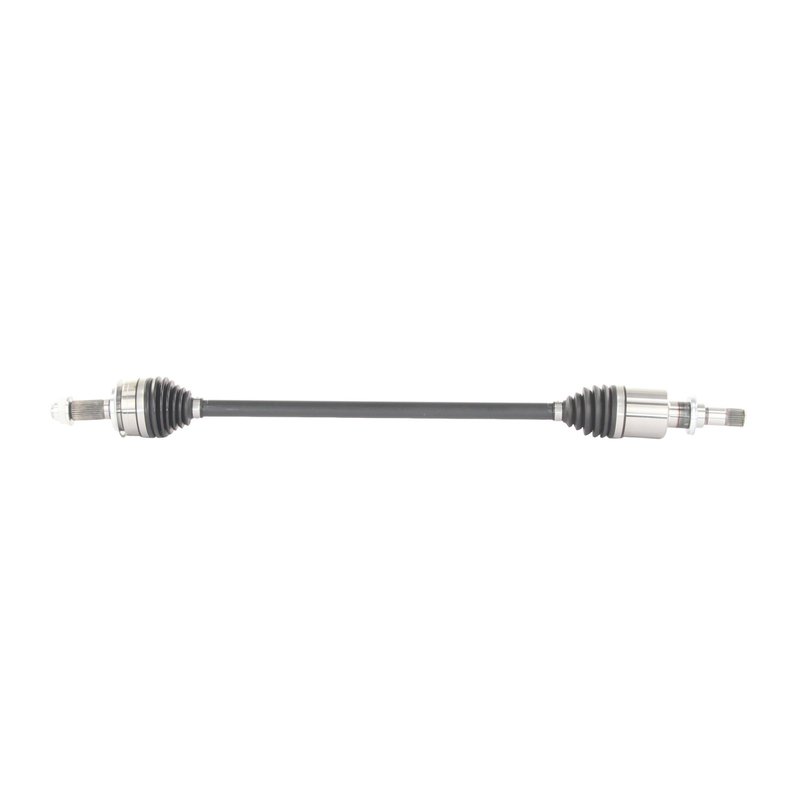

TrakMotive HO-86036 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86036 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 7/8 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.1 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37 3/16 |
| Overall Compressed Length (mm) | 945 |
| Overall Extended Length (in) | 39 1/16 |
| Overall Extended Length (mm) | 992.5 |
| Product line | CV Axle Shaft |
| Fits | Honda · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Axle nut included. Comes with a stake-lock nut for easier service.
Cross-references TrakMotive HO-86036 for the same application. See all 1.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-86036 is a front right CV axle shaft for 2019-2021 Honda Civic applications. It is built for the outer assembly position and includes an axle nut for a direct replacement on the specified vehicle fitment.
Key Features
- Fits 2019-2021 Honda Civic, front right
- CV axle shaft for driveline and axle service
- 25 inboard splines and 28 outboard splines
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Thermoplastic boot material on inboard and outboard joints
- Axle nut included with M24 x 1.5 thread size
- Hex axle nut head with 35.6 mm hex size
- Overall compressed length: 945 mm; extended length: 992.5 mm
- ABS tone ring not included
Product Details
TrakMotive HO-86036 is a replacement CV axle shaft for the front right side of the Honda Civic. The shaft measures 945 mm compressed and 992.5 mm extended, with a 25-spline inboard connection and a 28-spline outboard connection to match the listed application. TrakMotive positions this CV axle shaft within its CV Axle Shaft line for driveline repair work where a worn or damaged axle needs to be replaced on 2019-2021 Honda Civic models.
This part cross-references TrakMotive HO-86036 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration during acceleration from axle wear or imbalance
- Grease leakage from damaged thermoplastic boots
- Clunking or driveline noise from excessive axle play
- Loss of smooth power transfer to the front right wheel
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. This axle uses a hex-style nut with stake locking, and the included nut should be torqued to the vehicle specification and secured as required. Confirm whether the vehicle is equipped for ABS service, since no ABS tone ring is included. Always inspect related suspension and hub components during axle replacement.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Sport | 2.0L | L4 | Front Right | Outer Assembly; CV Axle Shaft |
| 2020 | Honda | Civic | Sport | 2.0L | L4 | Front Right | Outer Assembly; CV Axle Shaft |
| 2019 | Honda | Civic | Sport | 2.0L | L4 | Front Right | Outer Assembly; CV Axle Shaft |
