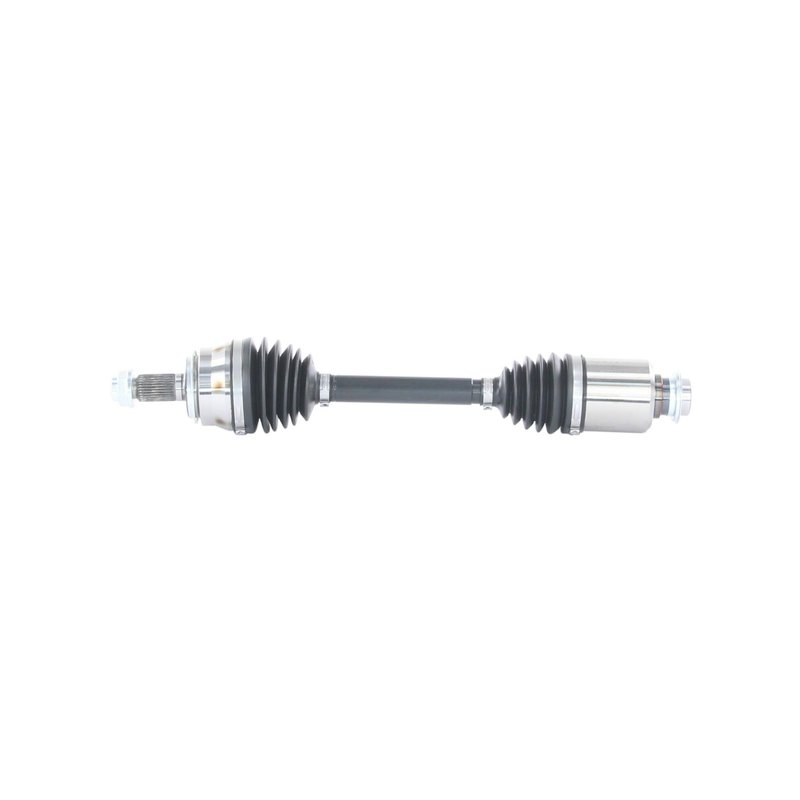

TrakMotive HO-86037 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86037 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.94 |
| Overall Compressed Length (mm) | 608 |
| Overall Extended Length (in) | 26.19 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 1 vehicle |
OE-style replacement. Premium CV axle shaft with a direct-fit design.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive HO-86037 for the same application. See all 1.
Front Right CV Axle Shaft for Acura TLX
TrakMotive HO-86037 is a premium CV axle shaft for the front right position on the 2021 Acura TLX. It is built with spline connections, thermoplastic boots, and a supplied axle nut for a direct driveline service replacement.
Key Features
- Fits 2021 Acura TLX, front right
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: female with spline shaft connection
- Outboard joint type: conventional with spline shaft connection
- Thermoplastic inboard and outboard joint boots
- Axle nut included; M26x1.5 thread, 35 mm hex size, stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 23.94 in. / 608 mm
- Overall extended length: 26.19 in. / 665 mm
Product Details
HO-86037 is part of TrakMotive’s AAR CV Axle Shaft line, a premium driveline replacement option for service work on the 2021 Acura TLX. The axle uses a female inboard joint, a conventional outboard joint, and spline connections at both ends for a direct fit in the front right position. TrakMotive identifies this application as non-ABS, and the axle is supplied with the correct axle nut for installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from damaged CV boots
- Driveline noise from worn splines or joint wear
- Loss of smooth power transfer to the front right wheel
Installation Notes and Tips
Before installing HO-86037, inspect the intermediate shaft for damage and replace it if needed, especially during CV axle service on the Acura TLX. Verify axle nut thread size, hex size, and locking style before assembly. Confirm the vehicle is a front right, non-ABS application and compare compressed and extended lengths to the original axle before installation.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Acura | TLX | 3.0L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
