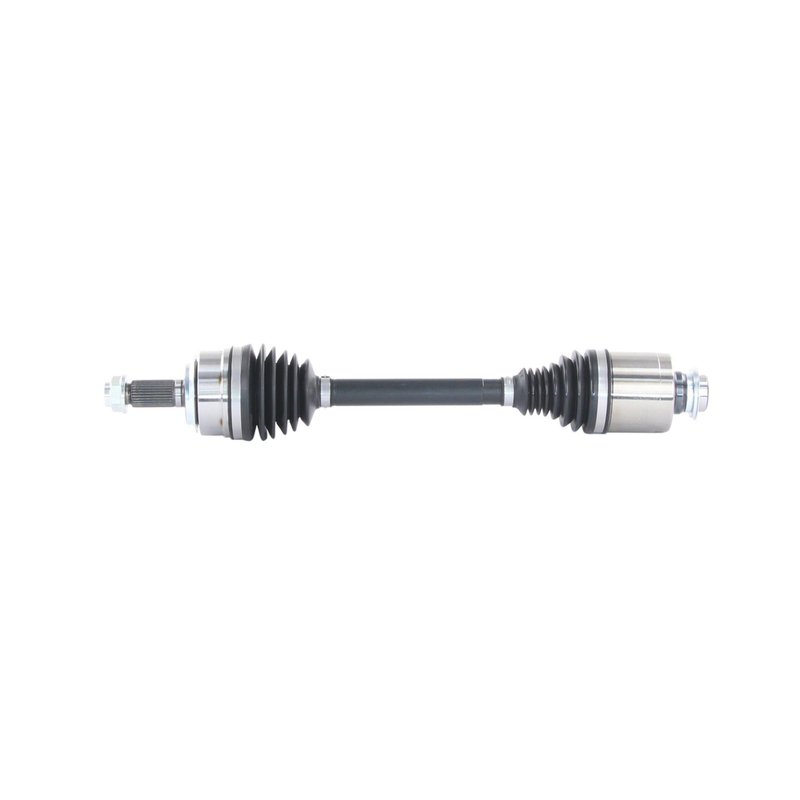

TrakMotive HO-86038 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86038 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.5 |
| Overall Compressed Length (mm) | 623 |
| Overall Extended Length (in) | 26.69 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 4 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. Female inboard and conventional outboard joints for secure engagement.
Axle nut included. Hex nut with stake locking for a ready-to-install setup.
Cross-references TrakMotive HO-86038 and NCV21072 for the same application. See all 2.
Front Right CV Axle Shaft for Acura RDX
TrakMotive HO-86038 is a premium CV axle shaft for the front right position on 2019-2022 Acura RDX models. It is built for direct driveline service with the correct spline counts, axle nut specification, and compressed/extended length for this application.
Key Features
- Fits 2019-2022 Acura RDX, front right
- TrakMotive AAR CV Axle Shaft line for driveline replacement service
- Premium grade construction with thermoplastic inboard and outboard joint boots
- Inboard joint type: female with spline connection style
- Outboard joint type: conventional with spline connection style
- 31-2T inboard splines and 30 outboard splines
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- Overall compressed length: 24.5 in (623 mm); overall extended length: 26.69 in (678 mm)
Product Details
HO-86038 is engineered as a front right CV axle shaft for the Acura RDX, with application-specific dimensions and joint configurations that match the listed vehicle fitment. The TrakMotive AAR CV Axle Shaft line focuses on replacement driveline components for service work where correct spline engagement, axle nut fit, and axle length are critical. This part cross-references Monroe Shocks & Struts (e.g., NCV21072) for the same application.
Common Repair Uses
- Restoring drivetrain power delivery after CV joint wear
- Replacing a clicking or binding front axle assembly
- Addressing torn boots, grease loss, or joint contamination
- Correcting vibration or noise from a worn front right axle
- Servicing a damaged axle nut or spline interface during repair
Installation Notes
Fits 2019-2022 Acura RDX, front right. Before installation, inspect the intermediate shaft for damage and replace it if necessary, as noted by the manufacturer. Verify axle nut thread size, hex size, and overall axle length against the removed part before assembly. This axle is specified for non-ABS applications unless otherwise noted; ABS tone ring is not included.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Acura | RDX | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Acura | RDX | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Acura | RDX | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Acura | RDX | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
