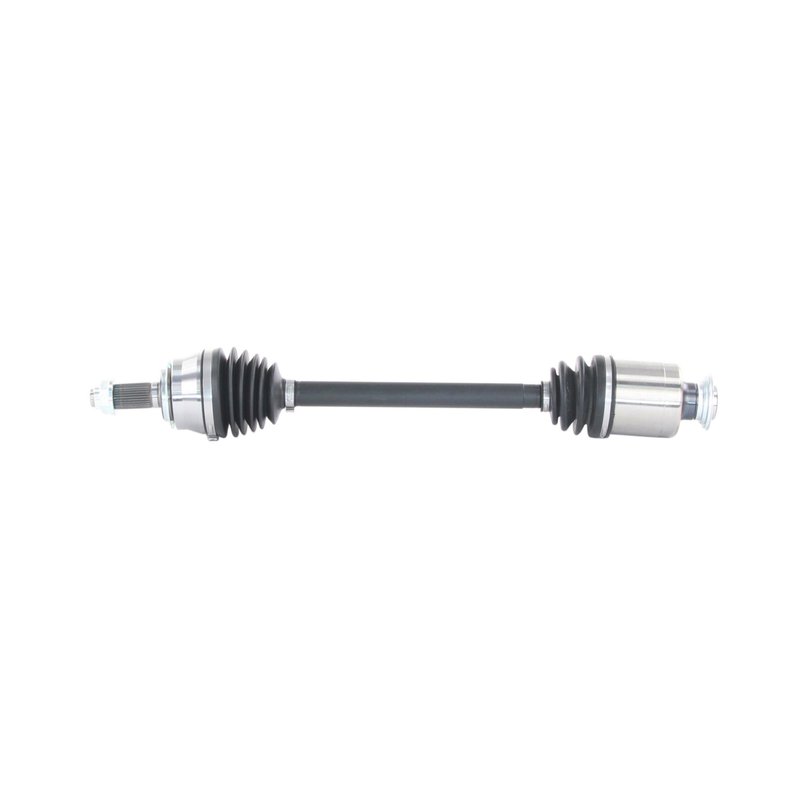

TrakMotive HO-86039 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-86039 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.75 |
| Overall Compressed Length (mm) | 706 |
| Overall Extended Length (in) | 30.19 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 1 vehicle |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic and neoprene boot materials.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive HO-86039 for the same application. See all 1.
Front Right CV Axle for 2022 Acura MDX
TrakMotive HO-86039 is a premium CV axle shaft for the front right position on the 2022 Acura MDX. It is built with a 35 mm axle nut, spline-style shaft connections, and OE-style joint materials to support smooth driveline operation in this application.
Key Features
- Fits 2022 Acura MDX, front right
- TrakMotive AAR CV Axle Shaft, part number HO-86039
- Premium-grade replacement axle shaft for driveline service
- Inboard joint type: female spline connection
- Outboard joint type: conventional with spline shaft connection
- Inboard boot material: thermoplastic
- Outboard boot material: neoprene
- Axle nut included with 35 mm hex size and M26x1.5 thread
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
The TrakMotive AAR CV Axle Shaft HO-86039 is engineered for the front right side of the 2022 Acura MDX. This axle uses a 31-2T inboard spline count and a 30-spline outboard connection, with compressed and extended lengths of 706 mm and 767 mm to match the listed application. TrakMotive identifies this part as an ABS axle that fits non-ABS applications unless otherwise noted, and the company states its products are backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing controls.
This part cross-references TrakMotive HO-86039 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged CV boots
- Axle shaft wear that affects driveline smoothness
- Noise from the front right driveline area on a 2022 Acura MDX
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if needed, especially when servicing the CV axle on the 2022 Acura MDX. Verify axle nut thread size, hex size, and spline counts against the original part before assembly. Confirm the front right position and check surrounding suspension and hub components for wear that could affect the repair.
Quality Assurance
TrakMotive supports this AAR CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes for consistent production control.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Acura | MDX | 3.5L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
