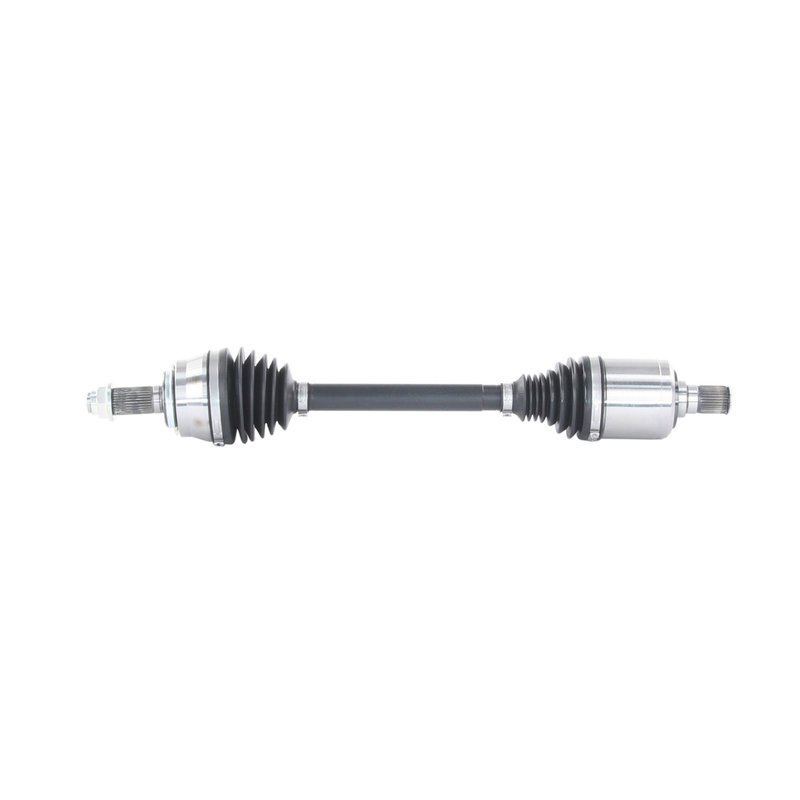

TrakMotive HO-86041 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-86041 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.625 |
| Overall Compressed Length (mm) | 677 |
| Overall Extended Length (in) | 29.06 |
| Product line | AAR CV Axle Shaft |
| Fits | Acura · 1 vehicle |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Built with thermoplastic boots and spline connections for dependable operation.
Hardware included. Axle nut is included for a more complete installation.
Cross-references TrakMotive HO-86041 for the same application. See all 1.
Front Left CV Axle Shaft for 2022 Acura MDX
TrakMotive HO-86041 is a premium CV axle shaft for the front left position on the 2022 Acura MDX. It is built for OE-style driveline service with a conventional outboard joint, a male inboard joint, and spline connections for a direct replacement application.
Key Features
- Fits 2022 Acura MDX, front left
- TrakMotive AAR CV Axle Shaft line
- Part number HO-86041
- 31 inboard splines and 30 outboard splines
- Thermoplastic boot material on both joints
- Includes axle nut with M26x1.5 thread, 35 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 26.625 in (677 mm)
- Overall extended length: 29.06 in (738 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of the 2022 Acura MDX and follows the OE AAR design noted in the fitment data. The HO-86041 uses a spline-style inboard shaft connection and spline-style outboard shaft connection, with a conventional outboard joint and thermoplastic boots for the inboard and outboard ends. The included axle nut is specified with a 35 mm hex size and M26x1.5 thread, which supports a precise service replacement on the Acura MDX front axle application.
This part cross-references TrakMotive HO-86041 for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from torn CV boots
- Axle play caused by spline or joint wear
- Front driveline noise on the Acura MDX
Installation Notes and Tips
Verify the front left position, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear, and confirm the axle nut is tightened to the vehicle manufacturer’s service specification. Because this axle is listed for a non-ABS application unless otherwise noted, confirm ABS-related requirements against the vehicle build before ordering.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a premium-grade component from an ISO 9001:2008 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Acura | MDX | 3.5L | V6 | Front Left | OE AAR design; AAR CV Axle Shaft |
